HySecurity Reflective Photo Eye Kit - MX4527

HySecurity Reflective Photo Eye Kit - MX4527
The UL325 Reflective Photo Eye, designed and manufactured by Hysecurity, is an external entrapment protection device type B1, non-contact sensor for use with gates, overhead doors, and barriers.

Call (800) 878-7829


The Retro-Reflective Photo Eye, designed and manufactured by Hysecurity, is an external entrapment, type b1, protection device for automatic gates and doors. It has a 50ft. operating range and is UL 325 compliant. With a pulsed near-infrared light beam and reflector, this device does not require wiring on the opposite side of the photo-eye. This photo-eye has a highly compatible design and includes the mounting bracket and hardware necessary for installation.


• 50 ft. Operating Range
• Wide Range Operating Voltage
• IP66 IEC Water-Tight Enclosure
• Type: Retro-Reflective Photoeye
• External Non-Contact Sensor (Type B1)
• Configured For 10k Monitored Operation
• Mounting Bracket and Hardware Included
• Compact Size, Easy To Move And Install
• Sensitivity Adjustments Via Potentiometer
• Watertight Package Ensures Reliable Outdoor Installation And Use
• Monitored Entrapment Protection For Overhead Doors, Gates, And Barriers

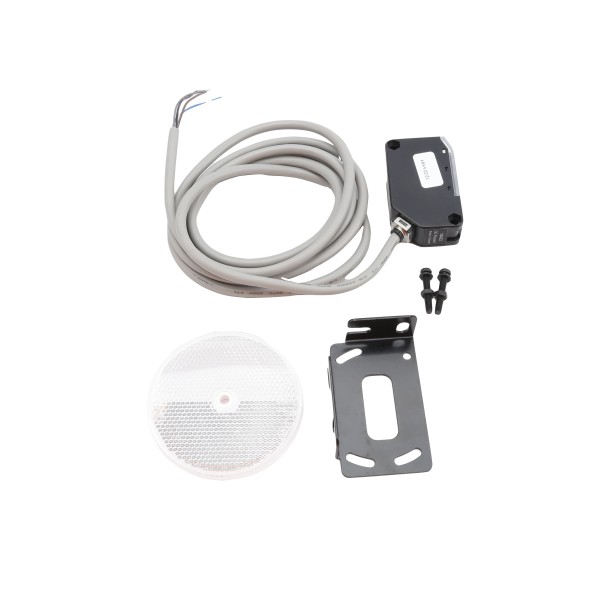

Photo Eye Kit Includes:

• UL325 Photo Eye
• Reflector-O
• Black Powder Coated Fasteners
• Black Powder Coated Steel Mounting Bracket


• IP 66 IEC
• Response Time: 10ms
• Certifications: UL325-2018
• Alignment Indicator: Red LED
• Operating Range: Up To 50 ft.
• Connections: 5 Wires, 6.5' Cable
• Signal Stability Indicator: Yellow LED
• Sensitivity Adjustment: Potentiometer
• Power: 12-30V DC, 24-30V AC @ 60 Hz
• Resistive Termination: 10k Ohm (internal)
• Relay Output: Form C Contacts, 30V AC/DC, 2A

Additional Information

SKU MX4527
Manufacturer HySecurity Gate Operators, Inc.
Photo Eye Type Retro-Reflective
Accessory Type Photo Eye
