HySecurity SlideDriver 15-M - Slide Gate Opener

HySecurity SlideDriver 15-M - Slide Gate Opener

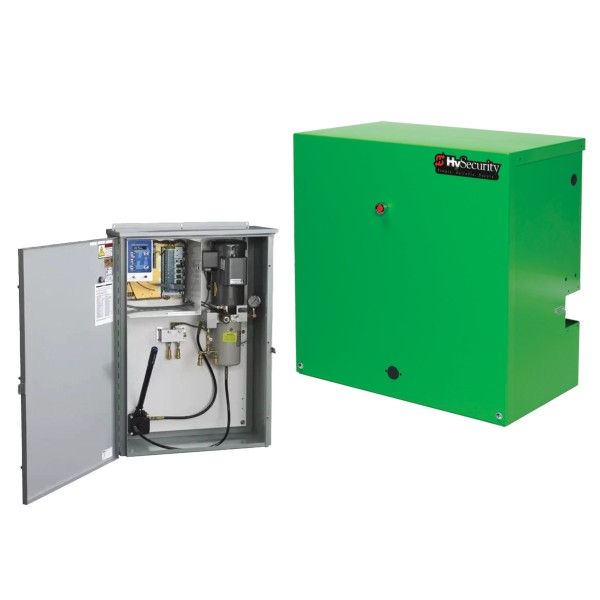

The SlideDriver 15-M Industrial Slide Gate Operator is for gates weighing up to 1,500 lbs. This is a modular unit that has two component parts: the SlideDriver 15-M Drive Unit and the SlideDriver 15-M Power Unit. Hydraulic automation allows for continuous cycles and frequent operation. The Smart Touch Controller provides intuitive control and simplifies configuration. The modular model alters the positioning of internal components to accommodate unique mounting.

1 HySecurity Swing Gate Replacement Parts ↓
	HySecurity HydraSupply 1 HP Power Supply for SlideDriver 15 M Automatic Slide Gate Opener Part: S-HSP-1-20	$7,354.20 each $7,354.20 each
	HySecurity 1 HP Drive Unit for SlideDriver M Automatic Slide Gate Openers Part: S-MSD-1-E0	$5,781.26 each $5,781.26 each

Details

HySecurity SlideDriver 15-M - Slide Gate Opener

The SlideDriver 15-M is a modular slide gate opener for unique mounting situations. This operator has two parts: the SlideDriver 15-M Drive Unit and the SlideDriver 15-M Power Unit. This operator can support and mobilize gates up to 1,500 pounds on a continuous-duty hydraulic cycle. Hydraulic motors control the compressed polyurethane AdvanceDrive wheels used to drive the gate. The strong 12-gauge steel chassis contains and protects all internal mechanisms of the operator. This gate opener moves fast by moving 1,500-pound gates for 1 foot per second. There are two voltage options: 115/208/230V 60HZ (1 Phase) and 208/230/460V 60HZ (3 Phase). If you need a 50HZ option, contact us at (888) 378-1127 for a customized order.

Key Features:

Duty Cycle: Continuous
Horsepower: 1 HP
Drive: Hydraulic
Drive Wheels: Two 6-Inch AdvanceDrive Wheels
Gate Weight Max: 1,500 Lb
Gate Length Max: Limited Only By Weight
Drawbar Pull: 300 Lb
Rate of Travel: 1Ft/S
Temperature Rating: -40° To 158° F
1 Phase Power: 115/208/230V 60HZ
3 Phase Power: 208/230/460V 60HZ
Communication: RS-232, RS-485
User Controls: Smart Touch Controller With 70+ Configurable Settings That Can Be Programmed With Keypad Or Using S.T.A.R.T Software
Relays: Three Configurable User Relays: One 30VDC, 3A Solid State And Two 250VAC, Or 10A Electromechanical; Optional Hy8Relay For 8 Additional Relay Outputs
Finish: Zinc Plated With Powder Coating
Listed to UL235: Usage Class I, II, III And IV
Warranty: 5 Year
Includes EMX IRB-MON Photo Eye And A 5-Foot Premium ASO Edge Sensor With Pre-Wired Hy2NC Adapter

Note: SlideDriver operators require XtremeDrive 25 inch Rack Kit installation for operation. Each kit includes 25 inches of XtremeDrive Rack. Compare this to the length of the desired gate to decide on the necessary number of rack kits. Read More

Prefer to Call? (888) 378-1127

Questions about part number SLIDE-DRIVER-15-M?

Required Fields *

SKU	SLIDE-DRIVER-15-M
Gate Opener Series	SlideDriver 15
Input Voltage	110/115/120 AC (60Hz, 1 Phase), 220/230/240 AC (60Hz, 1 Phase), 208 AC (60Hz, 1 Phase), 208 AC (60Hz, 3 Phase), 460/480 AC (60Hz, 3 Phase)
Finish	Powder-Coated
UL 325 Usage Class	Class I, Class II, Class III, Class IV
Max. Gate Weight	1,500 lbs.
Wheel Type	AdvanceDrive Wheel
Options	Modular
Operator HP	1 HP
Operating Speed	1 Feet Per Second
