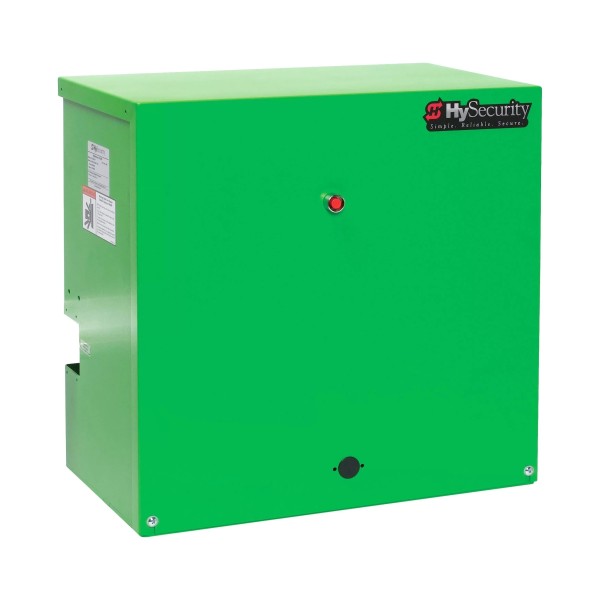

HySecurity SlideDriver 200-C w/ Battery Backup - Correctional Industrial Slide Gate Opener

The SlideDriver 200-C UPS Industrial Slide Gate Operator is for gates weighing up to 20,000 lbs. This is a correctional model that includes two parts: the SlideDriver 200-C UPS and the DC Power Supply 120. Hydraulic automation for continuous cycles allows for frequent operation. The Smart Touch Controller provides intuitive control and simplifies configuration. This unit contains a UPS backup power supply in case of AC Power failure. The corrections model includes additional control wiring necessary for high-security locations.

Note: This modular gate opener requires a Drive Unit and a DC Power Supply.

1

Slide Gate Openers

HySecurity SlideDriver 200-C w/ Battery Backup

SlideDriver 200‑C UPS

Part: S-MSD-1-FC

$8,990.69 each
$8,990.69 each
2

HySecurity Slide Gate Replacement Parts

HySecurity SlideDriver 200-C w/ Battery Backup

HySecurity 4 ‑ 5 HP DC 208/230 VAC Power Supply 150 for Automatic Gate Openers

Part: DCP3211

$8,647.25 each
$8,647.25 each

Details

HySecurity SlideDriver 200-C w/ Battery Backup - Correctional Industrial Slide Gate Opener

The HySecurity SlideDriver 200-C UPS is a correctional facility SlideDriver with advanced features such as additional control wiring, multiple relays, and three high-security lock options. This opener has two parts: the SlideDriver 200-C UPS and the DC Power Supply 120. This operator can support and mobilize gates up to 20,000 pounds on a continuous-duty hydraulic cycle. Hydraulic motors control the compressed polyurethane AdvanceDrive wheels used to drive the gate. The strong 12-gauge steel chassis contains and protects all internal mechanisms of the operator. The 80-C UPS model contains an Uninterruptible DC Power Supply that provides power to the unit upon AC power loss. This operator is fast, moving gates at 1 foot per second. There are two voltage options: 115V 60HZ (1 Phase) or 208-230V 60HZ (1 Phase). If you need a 50HZ option, contact us at (888) 378-1127 for a customized order.

Note: This modular gate opener requires a Drive Unit and a DC Power Supply.

Key Features:

  • Duty Cycle: Continuous
  • Horsepower: 4 HP
  • Drive: Hydraulic
  • Drive Wheels: Two 8-Inch AdvanceDrive Wheel, Two 8-Inch XtremeDrive Wheels, And 52Ft Rack
  • Gate Weight Max: 20,000 Lb
  • Gate Length Max: Limited Only By Weight
  • Drawbar Pull: 1,200 Lb
  • Rate of Travel: 1Ft/S
  • Temperature Rating: -40° To 158° F
  • 1 Phase Power: 115V 60HZ Or 208-230V 60HZ
  • Communication: RS-232, RS-485
  • User Controls: Smart Touch Controller With 70+ Configurable Settings That Can Be Programmed With Keypad Or Using S.T.A.R.T Software
  • Relays: Three Configurable User Relays: One 30VDC, 3A Solid State And Two 250VAC, Or 10A Electromechanical; Optional Hy8Relay For 8 Additional Relay Outputs
  • Finish: Zinc Plated With Powder Coating
  • Listed to UL235: Usage Class III And IV
  • Warranty: 5 Year
  • Includes Pre-Wired Hy2NC Adapter
Read More
Prefer to Call? (888) 378-1127

Questions about part number SLIDE-DRIVER-200-C-UPS?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU SLIDE-DRIVER-200-C-UPS
Gate Opener Series SlideDriver 200
Input Voltage 110/115/120 AC (60Hz, 1 Phase), 220/230/240 AC (60Hz, 1 Phase), 208 AC (60Hz, 1 Phase)
Finish Powder-Coated
UL 325 Usage Class Class III, Class IV
Max. Gate Weight 20,000 lbs.
Wheel Type AdvanceDrive Wheel, XtremeDrive Wheel
Options Correctional
UPS Battery Backup Yes
Operator HP 4 HP
Operating Speed 1 Feet Per Second
