HySecurity SlideDriver 30F-M - Slide Gate Opener

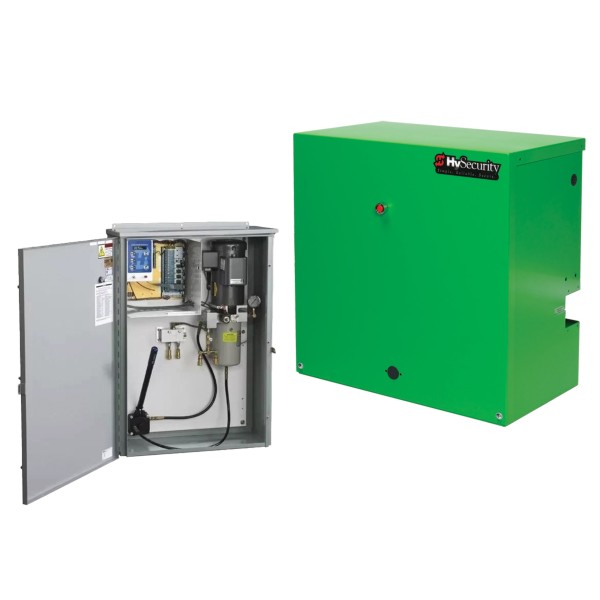

The SlideDriver 30F-M Industrial Slide Gate Operator is for gates weighing up to 3,000 lbs and is a modular unit. This operator comes with two component parts: the SlideDriver 30F-M Drive Unit and the SlideDriver 30F-M Power Unit. Hydraulic automation allows for continuous cycles and frequent operation. And advanced Smart Touch Controller provides intuitive control and simplifies configuration. The modular model alters the positioning of internal components to accommodate unique mounting.
1

HySecurity Swing Gate Replacement Parts

HySecurity SlideDriver 30F-M Modular Correctional Industrial Hydraulic Automatic Slide Gate Opener

HySecurity HydraSupply 2 HP Power Supply for SlideDriver 30 F Automatic Slide Gate Opener

Part: S-HSP-1-30

$9,940.31 each
$9,940.31 each
HySecurity SlideDriver 30F-M Modular Correctional Industrial Hydraulic Automatic Slide Gate Opener

HySecurity 2 HP Drive Unit for SlideDriver 30F‑M Automatic Slide Gate Openers

Part: S-MSD-1-F4

$5,781.26 each
$5,781.26 each

Details

HySecurity SlideDriver 30F-M - Slide Gate Opener

"

The SlideDriver 30F-M is a modular slide gate opener for unique mounting situations. This operator has two parts: the SlideDriver 30F-M Drive Unit and the SlideDriver 30F-M Power Unit. This operator can support and mobilize gates up to 3,000 pounds on a continuous-duty hydraulic cycle. Hydraulic motors control the compressed polyurethane AdvanceDrive wheels used to drive the gate. The strong 12-gauge steel chassis contains and protects all internal mechanisms of the operator. This gate opener moves fast by moving 3,000-pound gates for 1.7 feet per second. It is one of the fastest SlideDrivers available. There are two voltage options: 208/230V 60HZ (1 Phase) and 208/230/460V 60HZ (3 Phase). If you need a 50HZ option, contact us at (888) 378-1127 for a customized order.

Key Features:

  • Duty Cycle: Continuous
  • Horsepower: 2 HP
  • Drive: Hydraulic
  • Drive Wheels: Two 6-Inch AdvanceDrive Wheels
  • Gate Weight Max: 3,000 Lb
  • Gate Length Max: Limited Only By Weight
  • Drawbar Pull: 300 Lb
  • Rate of Travel: 1.7Ft/S
  • Temperature Rating: -40° To 158° F
  • 1 Phase Power: 208/230V 60HZ
  • 3 Phase Power: 208/230/460V 60HZ
  • Communication: RS-232, RS-485
  • User Controls: Smart Touch Controller With 70+ Configurable Settings That Can Be Programmed With Keypad Or Using S.T.A.R.T Software
  • Relays: Three Configurable User Relays: One 30VDC, 3A Solid State And Two 250VAC, Or 10A Electromechanical; Optional Hy8Relay For 8 Additional Relay Outputs
  • Finish: Zinc Plated With Powder Coating
  • Listed to UL235: Usage Class III And IV
  • Warranty: 5 Year
  • Includes EMX IRB-MON Photo Eye And A 5-Foot Premium ASO Edge Sensor With Pre-Wired Hy2NC Adapter
Note: SlideDriver operators require XtremeDrive 25 inch Rack Kit installation for operation. Each kit includes 25 inches of XtremeDrive Rack. Compare this to the length of the desired gate to decide on the necessary number of rack kits. Read More
Prefer to Call? (888) 378-1127

Questions about part number SLIDE-DRIVER-30F-M?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU SLIDE-DRIVER-30F-M
Gate Opener Series Slide Driver 30F
Input Voltage 220/230/240 AC (60Hz, 1 Phase), 208 AC (60Hz, 1 Phase), 208 AC (60Hz, 3 Phase), 460/480 AC (60Hz, 3 Phase)
Finish Powder-Coated
UL 325 Usage Class Class III, Class IV
Max. Gate Weight 3,000 lbs.
Wheel Type AdvanceDrive Wheel
Options Modular
Operator HP 2 HP
Operating Speed 1.7 Feet Per Second
