HySecurity SlideDriver 40-M w/ Battery Backup (UPS) - Slide Gate Opener

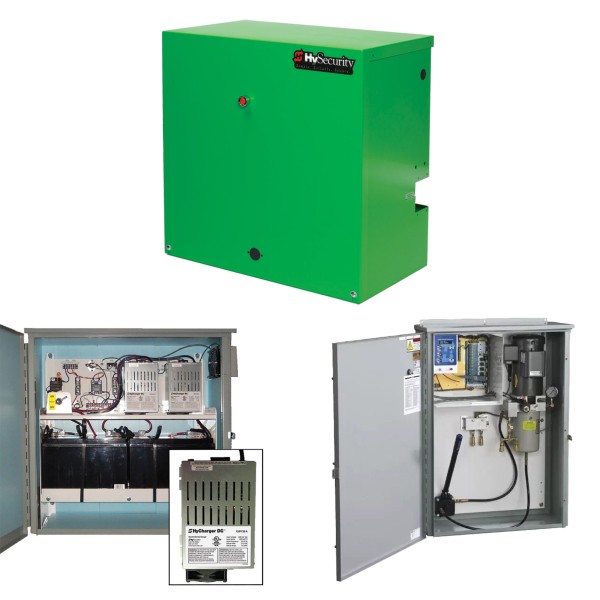

The HySecurity SlideDriver 40-M is an industrial slide gate operator designed and manufactured by HySecurity. This operator is capable of supporting and mobilizing gates up to 4,000 lbs on a continuous duty, hydraulic cycle. This model includes several parts, such as the SlideDriver 40-M UPS Drive Unit, the SlideDriver 40-M UPS Power Unit, and the DC Power Supply 60. This is a three-part unit that requires all parts to function. The Hydraulic motors control the compressed polyurethane AdvanceDrive wheels used to drive the gate. The strong 12-gauge steel chassis contains and protects all internal mechanisms of the operator. This modular model positions the motor, hydraulic pump , and electric controls in a remote enclosure for unique mounting purposes. The 40 UPS model contains an Uninterruptible DC Power Supply provides power to the unit upon AC power loss.
Note: This modular gate opener requires a Drive Unit, a HydraSupply Unit, and ONE of the two DC Power Supply options.
Note: SlideDriver operators require XtremeDrive 25 inch Rack Kit installation for operation. Each kit includes 25 inches of XtremeDrive Rack. Compare this to the length of the desired gate to decide on the necessary number of rack kits.
Specifications:
- Includes DC Power Supply 60
- Model: SlideDriver 40-M UPS
- Part #: SLIDEDRIVER40-M-LV
- Duty Cycle: Continuous
- UPS Battery Voltage: 115V 60/50Hz
- Horsepower: 1 hp
- Drive: Hydraulic
- Drive Wheels: Two 6 inch AdvanceDrive wheels
- Gate Weight Max: 4,000 lbs
- Gate Length Max: Limited only by weight
- Drawbar Pull: 300 lb
- Rate of Travel: 1ft/s
- Temperature Rating: -40° F to 158° F No heater necessary
- 1 Phase Power: 115/208/230V 60 Hz; 110/220V 50 Hz***
- 3 Phase Power: 208/230/460V or 575V 60Hz; 220/380/440V 50Hz***
- Communication: RS-232, RS-485, Ethernet/fiber using optional HyNet™ Gateway accessory
- User Controls: Smart Touch Controller with 70+ configurable settings. Smart Touch keypad and display or a PC using S.T.A.R.T. software.
- Relays: Three configurable user relays:
- one 30VDC
- 3A solid state and two 250VAC
- 10A electromechanical
- Optional Hy8Relay for 8 additional relay outputs
- Finish: Zinc plated with powder coating
- Listed to UL235: Usage Class I, II, III, IV
- Warranty: 5 year
| SKU | SLIDE-DRIVER-40-M-UPS |
|---|---|
| Gate Opener Series | SlideDriver 40 |
| Finish | Powder-Coated |
| UL 325 Usage Class | Class I, Class II, Class III, Class IV |
| Max. Gate Weight | 4,000 lbs. |
| Wheel Type | AdvanceDrive Wheel |
| Options | Modular |
| Operator HP | 2 HP |
| Operating Speed | 1 Feet Per Second |
