HySecurity SlideDriver 80-M w/ Battery Backup (UPS) - Slide Gate Opener

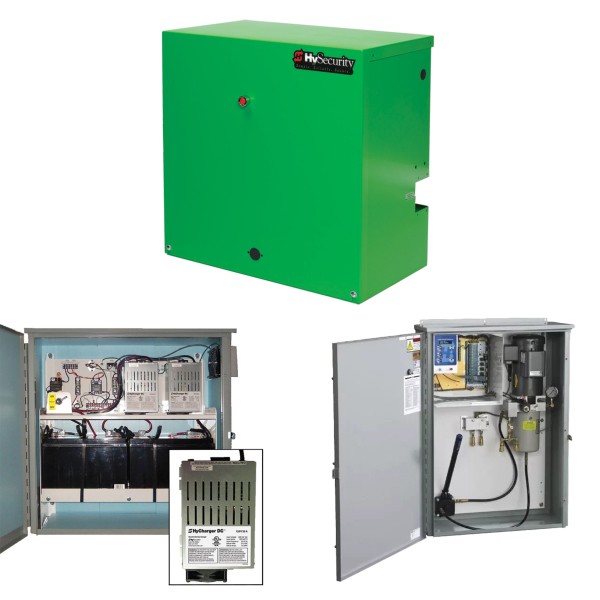

The SlideDriver 80-M Industrial Slide Gate Operator is for gates weighing up to 8,000 lbs. There are three component parts that make up this gate opener: the SlideDriver 80-M UPS Drive Unit, the SlideDriver 80-M UPS Power Unit, and the DC Power Supply 120. Hydraulic automation for continuous cycles allows for frequent operation. The Smart Touch Controller provides intuitive control and simplifies configuration. The modular model alters the positioning of internal components to accommodate unique mounting. This unit contains a UPS backup power supply in case of AC Power failure.

Note: This modular gate opener requires a Drive Unit, a HydraSupply Unit, and ONE of the two DC Power Supply options.

1

HySecurity Slide Gate Replacement Parts

HySecurity SlideDriver 80-M w/ Battery Backup (UPS)

HySecurity HydraSupply 2 HP Power Unit for SlideDriver 80‑M UPS Automatic Slide Gate Opener

Part: S-HSP-1-A8

$9,940.31 each
$9,940.31 each
HySecurity SlideDriver 80-M w/ Battery Backup (UPS)

HySecurity 2 HP Drive Unit for SlideDriver 80‑M UPS Automatic Slide Gate Opener

Part: S-MSD-1-FE

$6,940.79 each
$6,940.79 each
HySecurity SlideDriver 80-M w/ Battery Backup (UPS)

HySecurity 2 HP DC 115 VAC Power Supply 120 for Automatic Gate Openers

Part: DCP2111

$8,647.25 each
$8,647.25 each
HySecurity SlideDriver 80-M w/ Battery Backup (UPS)

HySecurity 2 HP DC 208/230 VAC Power Supply 120 for Automatic Gate Openers

Part: DCP2211

$8,647.25 each
$8,647.25 each

Details

HySecurity SlideDriver 80-M w/ Battery Backup (UPS) - Slide Gate Opener

The HySecurity SlideDriver 80-M UPS is an industrial slide gate operator designed and manufactured by HySecurity. This opener has three parts: the SlideDriver 80-M UPS Drive Unit, the SlideDriver 80-M UPS Power Unit, and the DC Power Supply 120. This operator can support and mobilize gates up to 8,000 pounds on a continuous-duty hydraulic cycle. Hydraulic motors control the compressed polyurethane AdvanceDrive wheels used to drive the gate. The strong 12-gauge steel chassis contains and protects all internal mechanisms of the operator. This modular model positions the motor, hydraulic pump, and electric controls in a remote enclosure for unique mounting purposes. The 80-M UPS model contains an Uninterruptible DC Power Supply that provides power to the unit upon AC power loss. This operator is fast, moving gates at 1 foot per second. There are two voltage options: 115V 60HZ (1 Phase) or 208-230V 60HZ (1 Phase). If you need a 50HZ option, contact us at (888) 378-1127 for a customized order.

Note: This modular gate opener requires a Drive Unit, a HydraSupply Unit, and ONE of the two DC Power Supply options.

Key Features:

  • Duty Cycle: Continuous
  • Horsepower: 2 HP
  • Drive: Hydraulic
  • Drive Wheels: One 8-Inch AdvanceDrive Wheel, One 8-Inch XtremeDrive Wheel, And 27Ft Rack
  • Gate Weight Max: 8,000 Lb
  • Gate Length Max: Limited Only By Weight
  • Drawbar Pull: 600 Lb
  • Rate of Travel: 1Ft/S
  • Temperature Rating: -40° To 158° F
  • 1 Phase Power: 115V 60HZ Or 208-230V 60HZ
  • Communication: RS-232, RS-485
  • User Controls: Smart Touch Controller With 70+ Configurable Settings That Can Be Programmed With Keypad Or Using S.T.A.R.T Software
  • Relays: Three Configurable User Relays: One 30VDC, 3A Solid State And Two 250VAC, Or 10A Electromechanical; Optional Hy8Relay For 8 Additional Relay Outputs
  • Finish: Zinc Plated With Powder Coating
  • Listed to UL235: Usage Class III And IV
  • Warranty: 5 Year
  • Includes One Premium EMX IRB-MON Photo Eye, One 5-Foot Premium ASO Edge Sensor And A Pre-Wired Hy2NC Adapter
Note: SlideDriver operators require XtremeDrive 25 inch Rack Kit installation for operation. Each kit includes 25 inches of XtremeDrive Rack. Compare this to the length of the desired gate to decide on the necessary number of rack kits. 115V DC Power Supply requires a 30A branch circuit. Make sure to pick the correct voltage, as chargers are not field convertible. Read More
Prefer to Call? (888) 378-1127

Questions about part number SLIDE-DRIVER-80-M-UPS?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU SLIDE-DRIVER-80-M-UPS
Gate Opener Series SlideDriver 80
Finish Powder-Coated
UL 325 Usage Class Class III, Class IV
Max. Gate Weight 8,000 lbs.
Wheel Type AdvanceDrive Wheel, XtremeDrive Wheel
Options Modular
UPS Battery Backup Yes
Operator HP 2 HP
Operating Speed 1 Feet Per Second
