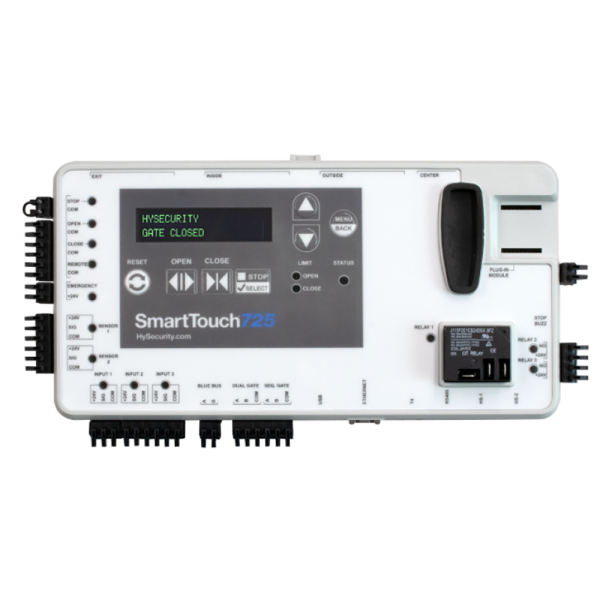

Nice HySecurity SmartTouch 725 Controller Board (Slide Driver II and 535) - MX5626

Details

Nice HySecurity SmartTouch 725 Controller Board (Slide Driver II and 535) - MX5626

The HySecurity SmartTouch 725 controller is a fully featured industrial-grade control board engineered for maximum reliability, configurability, and real-time communication. Designed to manage even the most demanding automated gate and perimeter security systems, it supports single or dual gate operation and offers over 70 user-adjustable parameters. Integrated HyNet™ technology provides remote monitoring, management, and email alerts for enhanced situational awareness. Adaptive Inherent Entrapment Sensing (IES) continuously evaluates gate resistance and automatically adjusts sensitivity thresholds to maintain safety compliance. With its 32-character OLED display, Bluetooth setup, and compatibility with Nice accessories and HySecurity operators, the SmartTouch 725 delivers advanced performance in a compact, intelligent package.

Key Features:

• Over 70 configurable user settings for tailored control and performance
• Integrated HyNet technology for remote management, alerts, and system reporting
• Adaptive Inherent Entrapment Sensor (IES) meets UL 325 safety requirements
• Bluetooth connectivity for wireless setup via SmartTouch 725 Installer App
• OLED display with 32-character screen for on-board diagnostics and configuration
• Three configurable user relays, expandable with optional I/O module
• Four Hy5B vehicle detector ports supporting advanced detection functions
• USB and Ethernet communication interfaces for programming and data transfer
• Designed for high-cycle industrial applications with long service life

Specifications

• Operating Voltage: 24 VDC
• Input Voltage: Determined by connected operator
• Accessory Power: 24VDC, 3A max total load
• Communication: BlueBUS, USB, Ethernet, RS-485, Bluetooth, OXI receiver
• User Controls: 32-character OLED display with 7 tactile buttons or Bluetooth smartphone interface
• Inputs: 15 inputs including 5 control inputs, 2 dedicated entrapment sensors, 3 programmable inputs, BlueBUS port, and 4 Hy5B vehicle detector sockets
• Relays: Three configurable relays - two 30VDC 2A solid state, one 240VAC 20A electromechanical; expandable with optional I/O module
• Temperature Range: -40 Degrees F to 158 Degrees F (-40 Degrees C to 70 Degrees C)
• External Entrapment Sensor Options: Automatically configures for 4-wire pulsed or 10k resistive monitoring
• ETL Listed: UL 325, Usage Class I, II, III, IV
• Warranty: 5 years with product registration
• Dimensions: 10 in. (W) x 5.1 in. (H) x 2.1 in. (D)
