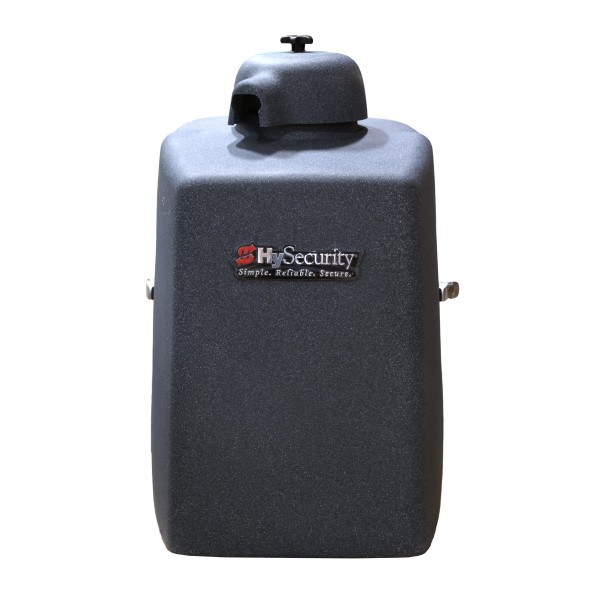

HySecurity SwingSmartDC 20 Commercial Hydraulic Swing Gate OpenerThe SwingSmartDC is a commercial swing gate operator designed and manufactured by HySecurity. This continuous duty, electromechanical operator is designed for numerous low maintenance cycles. This operator is most practical in commercial locations or secure, populated residential areas. The SwingSmartDC efficiently cycles a gate weighing up to 1,300 lbs or spanning up to 20 ft. at an adjustble rate of 10 - 15 seconds. Uninterruptible Power Supply (UPS) battery backup allows for 300 cycles after AC power loss. The chassis is made of elegant low flex, zinc plating and has a durable polyethylene clam shell cover. Configuration is easy with the Smart DC Controller, allowing for complete site accommodation.
- Model: SwingSmartDC 20
- Gate Specs:
- 1,300 lb for a 12 ft gate leaf
- 800 lb for a 16 ft gate leaf
- 600 lb for a 20 ft gate leaf
- Open/Close Time: Open/Close time set independently. Adjustable 10 to 15 sec.
- Duty Cycle: Continuous
- Horsepower: 1/2 hp
- Drive: Electromechanical
- UPS Standard Battery Backup Cycles*: Two 12V 8Ah batteries. Up to 300 cycles after AC power loss. Field configurable to fail open or secure when batteries deplete.
- UPS Extended Battery Backup Cycles*: Two 12V 50Ah batteries. Up to 1,200 cycles after AC power loss. Field configurable to fail open or secure when batteries deplete.
- Temperature Rating: -13° to 158° F No heater necessary
- Voltage Input: 115V or 208-230V, 50/60Hz Solar: 24 VDC solar panels**
- Accessory Power: 12VDC and 24VDC 1A each
- Communication: USB or RS-232, RS-485, Ethernet/fiber using optional HyNet™ Gateway accessory
- User Controls: Smart DC Controller with 70+ configurable settings. 32 character LCD display and 5 tact buttons or a PC using S.T.A.R.T. software.
- Relays: Two configurable user relays: 30VDC, 3A solid state and 250VAC, 10A electromechanical; Optional Hy8Relay™ for 8 additional relay outputs
- Finish: Zinc plated chassis; polyetylene clam shell cover
- ETL Listed (UL 325): Usage Class I, II, III, IV
- Cycle Tested : 500,000 cycles
- 5 year, (7 year single-family residential)
- Hy5B intelligent vehicle detectors
- Photo Eye
- Hy8Relay - accessory module provides eight additional programmable relay outputs
- HyNet Gateway for communicating gate system and accessory status in real time via Ethernet/fiber.
- Extended backup batteries
*SwingSmart DC is exceptionally energy efficient, however actual battery backed up cycles will depend on gate resistance to travel, cycle length, battery health, ambient temperature, accessory power draw and frequency of gate cycles during power outage.
**Solar panels not supplied by HySecurity
|Manufacturer||Nice | HySecurity|
|Operator Type||SwingSmart DC|
|Usage Class||I, II, III, IV|
|Max. Gate Weight||1,300 lbs.|
|Max. Gate Length||20 ft|
|Operator HP||1/2 HP|
|Open/Close Time||10 to 15 Sec.|
