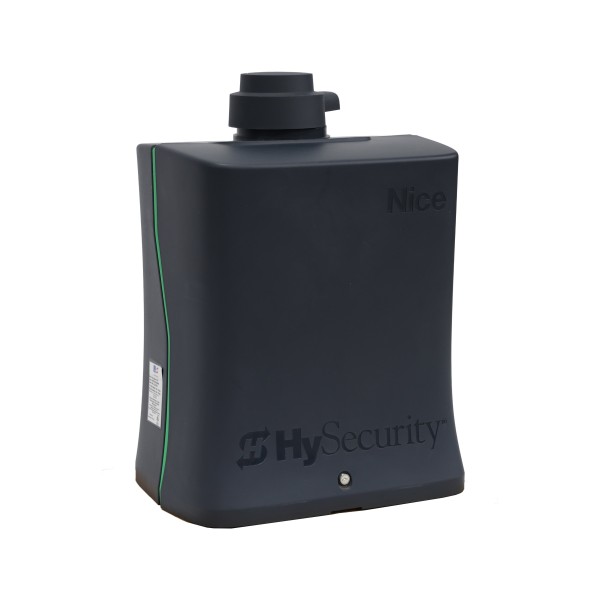

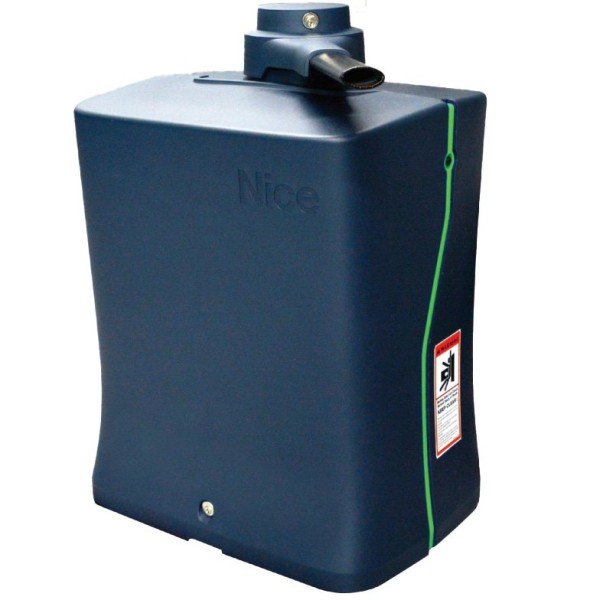

Nice SwingSmart 535 Commercial Automatic Swing Gate Opener

The Nice SwingSmart 535 swing gate operator offers next-generation functionality for residential and commercial properties that require dependable gate automation. Powered by a 24V brushless DC motor and SmartBLDC Power Module, it provides quiet operation, consistent torque, and efficient energy use. The integrated SmartTouch 725 controller gives installers over 70 configurable settings with Bluetooth and HyNet connectivity, allowing configuration and monitoring from a smartphone interface. Capable of moving gates up to 1,300 pounds and 20 feet per leaf, the system includes battery backup for up to 300 cycles after power loss, with the option to upgrade for extended operation. Built in the USA with a high-impact copolymer cover and zinc-rich powder-coated chassis.

Features

• Brushless DC motor with SmartBLDC Power Module for efficient performance
• Supports gates up to 1,300 lbs and 20 ft per leaf
• SmartTouch 725 controller with over 70 adjustable settings
• Bluetooth and HyNet connectivity for wireless setup and monitoring
• Independent open and close time adjustment (10 - 15 seconds)
• Standard battery backup up to 300 cycles; extended up to 1,000 cycles with 35Ah batteries
• Integrated diagnostics and event log for maintenance tracking
• Made in the USA from globally sourced materials

Specifications

• Duty Cycle: Continuous
• Horsepower: Equivalent to 1/2 HP
• Drive Type: Electromechanical - 24V Brushless DC motor with direct drive power train
• Open/Close Time: 10 - 15 seconds (independently adjustable)
• Gate Length: Max 20 ft (6 m) per leaf
• Gate Weight: 1,300 lb (590 kg) for 12 ft leaf; 800 lb (363 kg) for 16 ft leaf; 600 lb (272 kg) for 20 ft leaf
• UPS Battery Backup: Two 12V 8Ah batteries (up to 300 cycles); optional 35Ah batteries (up to 1,000 cycles)
• Input Voltage: 115V or 208 - 230V AC, 60/50 Hz; optional 24V solar panel
• Operating Voltage: 24VDC
• Temperature Range: -13 to 158 Degrees F (-25 to 70 Degrees C)
• Accessory Power: 24VDC, 2A accumulative
• Communication: BlueBUS, USB, Ethernet, RS-485, Bluetooth, OXI
• Included Accessories: Photo eye with BlueBUS, two 8Ah batteries
• Finish: Zinc-rich primer with black powder-coated chassis; high-impact copolymer cover
• UL Listing: ETL Listed (UL 325), Usage Class I - IV
• Warranty: 5 years (7 years single-family residential with registration)
