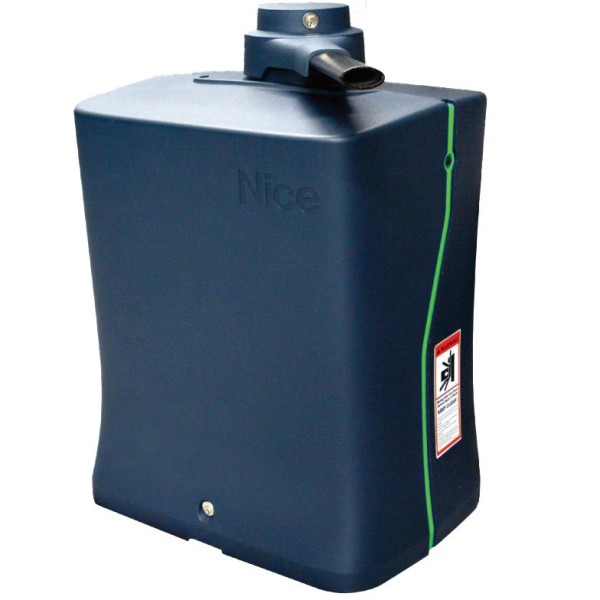

Nice SwingSmart 535 Commercial Automatic Swing Gate Opener with Articulated Arm for Uneven Grades

Details

Nice SwingSmart 535 Commercial Automatic Swing Gate Opener with Articulated Arm for Uneven Grades

The Nice SwingSmart 535 with Articulated Arm enhances the original design with added flexibility for uneven grades and sloped driveways. This model incorporates a specially engineered articulating arm that allows smooth, consistent motion even when gate posts or surfaces are not level. Powered by a 24V brushless DC motor and SmartBLDC Power Module, it maintains quiet operation and consistent torque for controlled gate travel. The SmartTouch 725 controller enables over 70 customizable settings with Bluetooth and HyNet connectivity, allowing wireless configuration and system monitoring through a smartphone. Supporting gates up to 1,300 pounds and 20 feet per leaf, the SwingSmart 535 with Articulating Arm offers dependable performance, extended battery backup, and the adaptability needed for challenging terrain.

Features

• Includes articulating arm for operation on uneven or sloped surfaces
• Brushless DC motor with SmartBLDC Power Module for reliable performance
• Supports gates up to 1,300 lbs and 20 ft per leaf
• SmartTouch 725 controller with over 70 adjustable settings
• Bluetooth and HyNet connectivity for wireless setup and monitoring
• Independent open and close time adjustment (10 - 15 seconds)
• Standard battery backup up to 300 cycles; extended up to 1,000 cycles with 35Ah batteries
• Integrated diagnostics and event log for maintenance tracking
• Made in the USA from globally sourced materials

Specifications

• Duty Cycle: Continuous
• Horsepower: Equivalent to 1/2 HP
• Drive Type: Electromechanical – 24V Brushless DC motor with direct drive power train
• Open/Close Time: 10 - 15 seconds (independently adjustable)
• Gate Length: Max 20 ft (6 m) per leaf
• Gate Weight: 1,300 lb (590 kg) for 12 ft leaf; 800 lb (363 kg) for 16 ft leaf; 600 lb (272 kg) for 20 ft leaf
• UPS Battery Backup: Two 12V 8Ah batteries (up to 300 cycles); optional 35Ah batteries (up to 1,000 cycles)
• Input Voltage: 115V or 208 - 230V AC, 60/50 Hz
• Operating Voltage: 24VDC
• Temperature Range: -13 to 158 Degrees F (-25 to 70 Degrees C)
• Accessory Power: 24VDC, 2A accumulative
• Communication: BlueBUS, USB, Ethernet, RS-485, Bluetooth, OXI
• Included Accessories: Articulating arm assembly, photo eye with BlueBUS, two 8Ah batteries
• Finish: Zinc-rich primer with black powder-coated chassis; high-impact copolymer cover
• UL Listing: ETL Listed (UL 325), Usage Class I - IV
• Warranty: 5 years (7 years single-family residential with registration)
