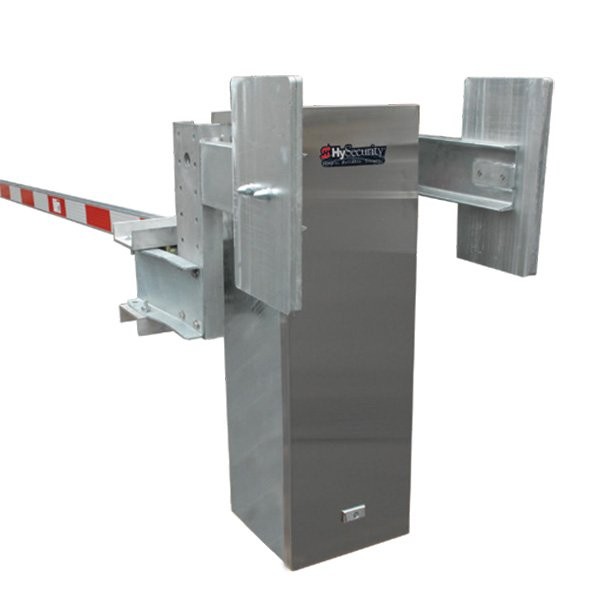

HySecurity StrongArmDOT Commercial Barrier Gate Opener with Battery Backup (28ft Max Arm)

The StrongArmDOT 28 is built to meet Department of Transportation (DOT) standards, offering reliable traffic lane control with built-in UPS support. Compatible with arms up to 28 feet, it's ideal for highway and toll applications. Please note: Boom arm not included.

1

Barrier Arms

HySecurity StrongArmDOT 28 w/Battery Backup (UPS) - Barrier Opener

HySecurity StrongArm DOT 28 w/Battery Backup (UPS) ‑ Barrier Opener

Part: S-HTG-1-64

$14,232.78 each
$14,232.78 each
2

HySecurity Swing Gate Replacement Parts

HySecurity StrongArmDOT 28 w/Battery Backup (UPS) - Barrier Opener

HySecurity DC 3/4 ‑ 1 HP Power Supply 115 VAC for Automatic Gate Openers

Part: DCP1111

$8,996.44 each
$8,996.44 each
HySecurity StrongArmDOT 28 w/Battery Backup (UPS) - Barrier Opener

HySecurity DC 3/4 ‑ 1 HP Power Supply 208/230 VAC for Automatic Gate Openers

Part: DCP1211

$8,996.44 each
$8,996.44 each
3

HySecurity Replacement Boom Gate Arms

Details

HySecurity StrongArmDOT Commercial Barrier Gate Opener with Battery Backup (28ft Max Arm)

The HySecurity StrongArmDOT 28 is purpose-built to meet Department of Transportation (DOT) standards, delivering secure and continuous vehicle access control for highway medians, toll plazas, and municipal traffic lanes. Supporting arms up to 28 feet and operating via a high-torque hydraulic system, this barrier gate opener ensures reliable performance in high-cycle, weather-exposed environments. Its integrated UPS power supply allows operations to continue through extended outages, which is critical for public safety and uninterrupted infrastructure flow. Engineered with modular Smart Touch logic, DOT-compliant safety standards, and ruggedized construction, this model is a prime choice for state transportation departments and roadway maintenance authorities. The unit installs easily and integrates with existing control networks via RS-232, RS-485, or optional fiber/Ethernet communications. Barrier arm not included.

*This modular barrier opener requires a Gate Opener/Power Supply Unit and ONE of the two DC Power Supply options.

*Power Supply Options:

  • DCP-1111 Power Supply: A 60 Hz, 15A DC power supply designed for UPS applications. It includes two HyCharger DC chargers and four HyBattery 70 units, offering high-performance charging and battery management for continuous operation during outages.
  • DCP-1211 Power Supply: This more advanced 60 Hz, 20A DC power supply comes with two HyCharger DC units and six HyBattery 70 batteries. It is ideal for applications requiring extended backup runtime and is often selected for higher-security or remote installations where power loss could be prolonged.

Key Features:

  • DOT-compliant HySecurity StrongArm barrier operator for highway-grade control
  • Hydraulic barrier gate system with Smart Touch Controller and UPS battery backup
  • Barrier operator for industrial and transportation sites with high-cycle performance
  • Automatic gate arm operator ideal for toll booths, secure roadways, and public works
  • StrongArm gate with advanced control logic and configurable relay options
  • Traffic control barrier for secured entry in DOT and municipal projects
  • Weatherproof enclosure with keyed T-lock and zinc-plated powder-coated chassis

Specifications:

  • Max boom arm length: 28 ft (center yoke mount, arm not included)
  • Arm compatibility: Aluminum or aluminum-fiberglass construction
  • Opening/closing time: Approx. 5 seconds open / 6 seconds close
  • Duty cycle: 2,000 cycles/day
  • Drive system: 3/4 HP hydraulic motor
  • UPS battery voltage: 115V or 208-230V 60/50 Hz
  • Power input (single phase): 115/208/230V 60 Hz or 110/220V 50 Hz
  • Power input (three phase): 208/230/460/575V 60 Hz or 220/380V 50 Hz
  • Temperature range: -40 degrees F to 158 degrees F (no heater required)
  • Communication: RS-232, RS-485, Ethernet/fiber via optional HyNet Gateway
  • User interface: Smart Touch keypad with PC programming via S.T.A.R.T. software
  • Relays: Three configurable user relays with optional Hy8Relay expansion
  • UL listed: Usage Class I, II, III, IV
  • Finish: Yellow powder-coated zinc-plated steel
  • Warranty: 5 years

StrongArm Model Comparison

Model StrongArm 14F StrongArm 20 UPS StrongArm 28 UPS StrongArm DOT 28 UPS StrongArm 36 UPS
Arm Length Max. Up to 14 ft Up to 20 ft *
Side mount up to 18 ft
Up to 28 ft * Up to 28 ft Up to 36 ft*
Duty Cycle 2,000 cycles/day*
Open/Close Time 2 seconds to open; 3 seconds to close 3 seconds to open; 4 seconds to close 5 seconds to open; 6 seconds to close 5 seconds to open; 6 seconds to close 8 seconds to open; 8 seconds to close
UPS Battery Backup Cycles Optional 230V AC Power Supply w/HyInverter AC DC Power Supply w/HyCharger
(up to 300 cycles)
DC Power Supply w/HyCharger
(up to 300 cycles)
DC Power Supply w/HyCharger
(up to 300 cycles)
DC Power Supply w/HyCharger
(up to 300 cycles)
Single Phase Voltages See image for detailed list per model
Three Phase Voltages 50Hz: 208/230/400V
60Hz: 208/230/460V
N/A N/A N/A N/A
User Controls Smart Touch Controller with 70+ configurable settings. Smart Touch keypad and 32 character OLED display or PC using S.T.A.R.T. software
ETL Listed (UL 325) Usage Class I, II, III, IV
Warranty 5 year
Prefer to Call? (888) 378-1127

Questions about part number STRONG-ARM-DOT-28-UPS?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU STRONG-ARM-DOT-28-UPS
Operator Type StrongArm
UL 325 Usage Class Class I, Class II, Class III, Class IV
Input Voltage 24 AC, 110/115/120 AC (60Hz, 1 Phase), 220/230/240 AC (60Hz, 1 Phase), 240 AC (60 Hz, 3 Phase), 208 AC (60Hz, 1 Phase), 208 AC (60Hz, 3 Phase), 220/230/240 AC (60Hz, 3 Phase), 230 AC (50Hz, 1 Phase)
Specification Sheet Download PDF file
