HySecurity StrongArmPark DC 14 Parking and Traffic Control Barrier Arm
Details
HySecurity StrongArmPark DC 14 Parking and Traffic Control Barrier Arm
The HySecurity StrongArmPark DC 14 is a highly reliable electromechanical parking and traffic control barrier-arm operator engineered for continuous duty cycle operation. Designed for secure vehicle access control, the StrongArmPark DC 14 includes HyProtect breakaway arm technology to minimize downtime and simplify arm replacement following impact. The integrated UPS backup allows continued operation during power outages, while Smart DC controller technology provides over 70 configurable settings for precise control. Compatible with multiple arm types, lengths, and accessories, the StrongArmPark DC 14 is ideal for high-volume parking garages, private lots, gated communities, and commercial traffic control applications.
Features
- Electromechanical continuous duty barrier arm operation
- Built-in UPS backup allows over 1,000 cycles after power loss*
- HyProtect breakaway arm bracket reduces downtime after impacts
- Smart DC controller with 70+ user-configurable settings
- Field adjustable open/close speeds: 2.5, 3, or 3.5 seconds
- Durable zinc-plated and powder-coated finish
- Operates in extreme temperatures (-13°F to 158°F) without a heater
- ETL Listed UL 325 compliant for Usage Class I-IV
- Tested for over 2 million operating cycles
Specifications
- Maximum Arm Length: 14 ft (boom sold separately, 8–14 ft options)
- Warranty: 2 years
- Full Open Angle: 90° ± 10°
- Handing: Left hand standard, right hand available
- Duty Cycle: 100% continuous
- Drive Type: Electromechanical
- UPS Backup: 2 × 12V, 8Ah batteries (over 1,000 cycles after AC loss*)
- Fail State: Configurable to fail open or secure after battery depletion
- Power Input: 115VAC 3A or 208-230VAC 1.5A, 60/50Hz
- Accessory Power: 12VDC and 24VDC, 1A each
- Temperature Range: -13°F to 158°F (-25°C to 70°C)
- Communication: USB, RS-232, RS-485, Ethernet/fiber via optional HyNet Gateway
- User Relays: 1 configurable relay (250VAC, 10A)
- Optional Relay Expansion: Hy8Relay (adds 8 outputs)
- Cycle Rating: Tested to 2 million cycles

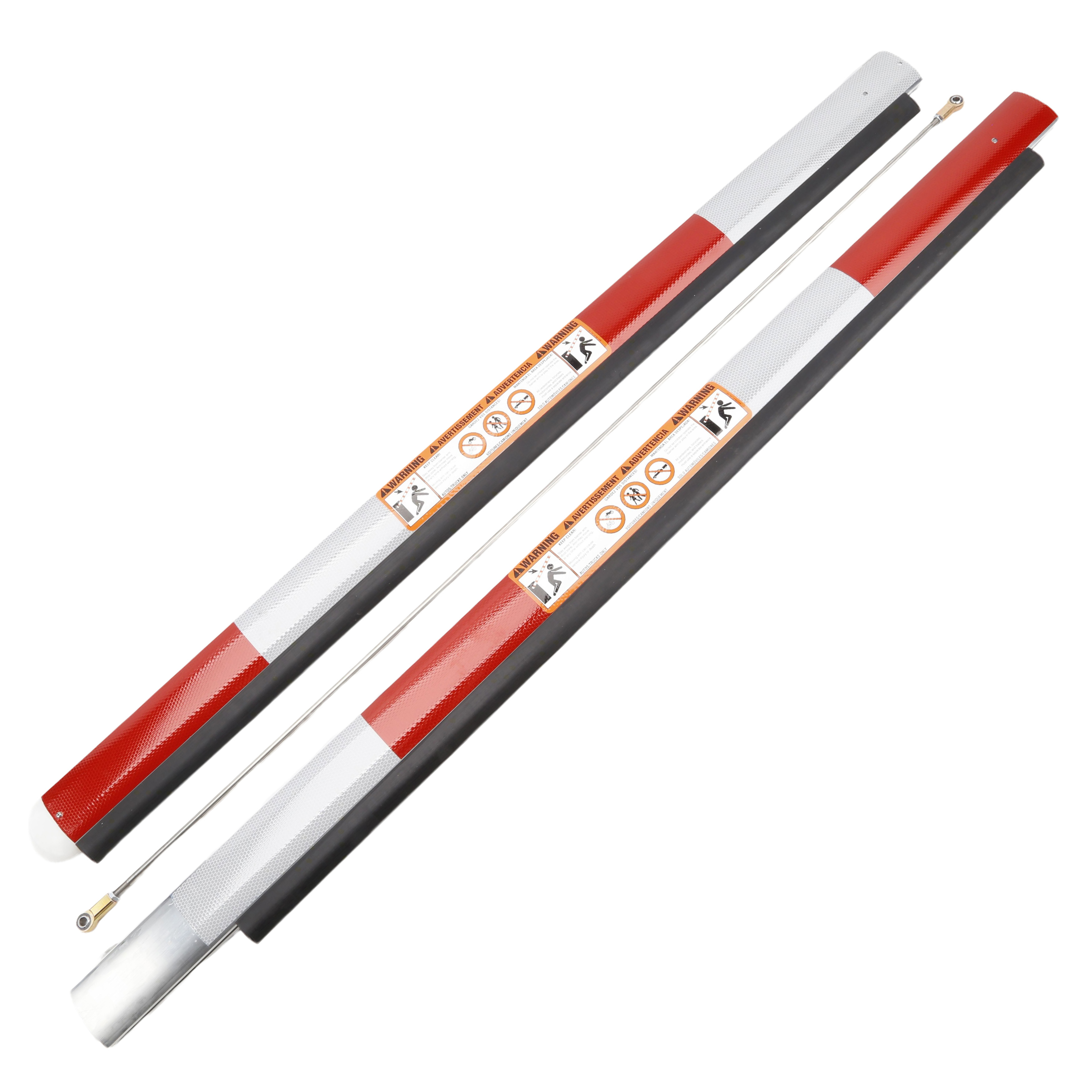

Compatible Barrier Arms
8' Barrier Arm
9' Barrier Arm
10' Barrier Arm
12' Barrier Arm
14' Barrier Arm | SKU | SAP-DC-14 |
|---|---|
| Max. Arm Length | 14 ft. |
| Operator Type | StrongArmPark DC |
| Input Voltage | 24 DC |
| Duty Cycle | Continuous Duty |
| Manufacturer | Nice | HySecurity |
| UL 325 Usage Class | Class I, Class II, Class III, Class IV |
| Operating Time | 2.5/3/3.5 s |
| Manual | Download PDF file |
| Specification Sheet | Download PDF file |
