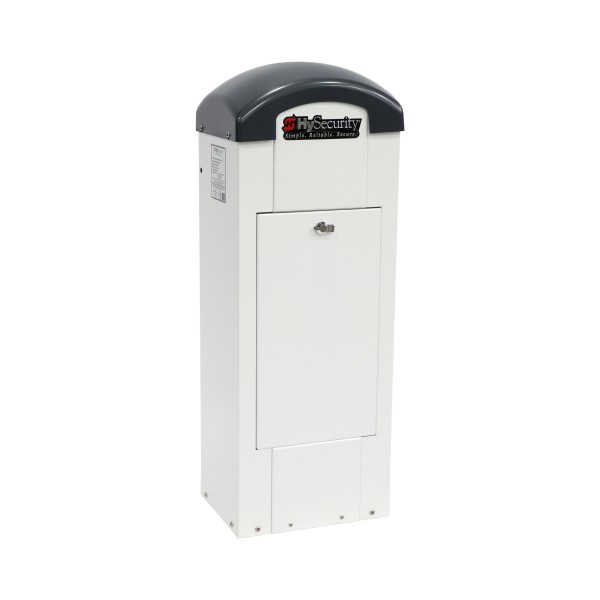

HySecurity StrongArmPark DCS Solar 10 Parking and Traffic Control Barrier Arm
Details
HySecurity StrongArmPark DCS Solar 10 Parking and Traffic Control Barrier Arm
The HySecurity StrongArmPark DCS Solar 10 is a highly efficient electromechanical parking and traffic control barrier-arm operator engineered for continuous duty operation. Designed for secure and reliable vehicle access, this model includes solar-ready operation, built-in UPS backup power, and HyProtect™ breakaway arm technology for easy arm replacement following impacts. The zinc-plated and powder-coated chassis protects internal components while the Smart DC controller allows for extensive user configuration. Ideal for parking lots, private communities, secured commercial lots, and facilities requiring low power or off-grid operation, the StrongArmPark DCS Solar 10 combines long service life with maximum flexibility.
Features
- Electromechanical continuous duty cycle for nonstop operation
- Solar-ready design (24VDC solar input – solar panels sold separately**)
- Built-in UPS allows operation after power loss (over 1,000 cycles*)
- HyProtect™ breakaway arm bracket minimizes downtime after impact
- Smart DC controller with 70+ configurable settings and LCD display
- Field adjustable open/close speeds: 1.5, 2, or 2.5 seconds
- Zinc-plated, powder-coated chassis protects internal components
- Operates in extreme temperatures without a heater (-13°F to 158°F)
- ETL Listed UL 325 compliant for Usage Class I-IV
- Cycle life tested to over 2 million cycles
Specifications
- Maximum Arm Length: 10 ft (boom sold separately, 8–10 ft options)
- Warranty: 2 years
- Finish: Zinc plated with powder coating
- Full Open Angle: 90° ± 10°
- Handing: Left hand standard, easily field-convertible to right hand
- Duty Cycle: 100% continuous
- Drive Type: Electromechanical
- UPS Backup: 2 × 12V, 8Ah batteries (over 1,000 cycles after AC loss*)
- Fail State: Configurable to fail open or secure after battery depletion
- Power Input: 115VAC 3A or 208-230VAC 1.5A, 60/50Hz
- Solar Input: 24VDC (solar panels sold separately**)
- Accessory Power: 12VDC and 24VDC, 1A each
- Temperature Range: -13°F to 158°F (-25°C to 70°C)
- Communication: USB, RS-232, RS-485, Ethernet/fiber via optional HyNet™ Gateway
- User Relays: 1 configurable relay (250VAC, 10A)
- Optional Relay Expansion: Hy8Relay (adds 8 outputs)
- Cycle Rating: Tested to 2 million cycles
* Actual UPS cycles depend on accessory power draw, cycle frequency, temperature, and battery condition.
** Solar panels sold separately.
Compatible Barrier Arms
8' Barrier Arm
9' Barrier Arm
10' Barrier Arm | SKU | SAP-DCS-10 |
|---|---|
| Max. Arm Length | 10 ft. |
| Operator Type | StrongArmPark DC |
| Input Voltage | 24 DC, 110/115/120 AC (60Hz, 1 Phase), 220/230/240 AC (60Hz, 1 Phase), 208 AC (60Hz, 1 Phase), 230 AC (50Hz, 1 Phase) |
| Solar Compatible | Yes |
| Duty Cycle | Continuous Duty |
| Manufacturer | Nice | HySecurity |
| UL 325 Usage Class | Class I, Class II, Class III, Class IV |
| Operating Time | 1.5/2/2.5 s |
| Manual | Download PDF file |
| Specification Sheet | Download PDF file |
