HySecurity SwingRiser 14-Twin w/ Battery Backup (UPS) - Swing Gate Opener 14s Open/Close Time

The SwingRiser 14-Twin is capable of cycling 1,000 lb gates in 14 seconds with reliable hydraulic power. It includes a UPS and configurable posts for flexible installation. Note: Requires a HydraSupply Unit, one DC Power Supply, and one of each listed Post.

Please review the linked order form(s) to ensure you are selecting the correct sizes, lengths, quantities, and any necessary components for your project. While you may not need to submit the form, it serves as a helpful guide to avoid missing any required items. Orders placed without the appropriate selections may be delayed or require additional follow-up. Contact us if you have any questions before ordering.

Order Form
1

HySecurity Swing Gate Replacement Parts

SwingRiser 14-Twin UPS - SWING-RISER-14-T-UPS

HySecurity SwingRiser HRG 222 Post 1 ‑ Standard Height

Part: S-SWR-1-D1

$13,142.54 each
$13,142.54 each
SwingRiser 14-Twin UPS - SWING-RISER-14-T-UPS

HySecurity SwingRiser HRG 222 Post 2 ‑ Standard Height

Part: S-SWR-1-D2

$13,142.54 each
$13,142.54 each
SwingRiser 14-Twin UPS - SWING-RISER-14-T-UPS

HySecurity HydraSupply 2 HP DC Power Supply Automatic Gate Openers

Part: S-HSP-1-83

$17,787.51 each
$17,787.51 each
2

HySecurity Slide Gate Replacement Parts

SwingRiser 14-Twin UPS - SWING-RISER-14-T-UPS

HySecurity 2 HP DC 115 VAC Power Supply 120 for Automatic Gate Openers

Part: DCP2111

$8,996.44 each
$8,996.44 each
SwingRiser 14-Twin UPS - SWING-RISER-14-T-UPS

HySecurity 2 HP DC 208/230 VAC Power Supply 120 for Automatic Gate Openers

Part: DCP2211

$8,996.44 each
$8,996.44 each

Details

HySecurity SwingRiser 14-Twin w/ Battery Backup (UPS) - Swing Gate Opener 14s Open/Close Time

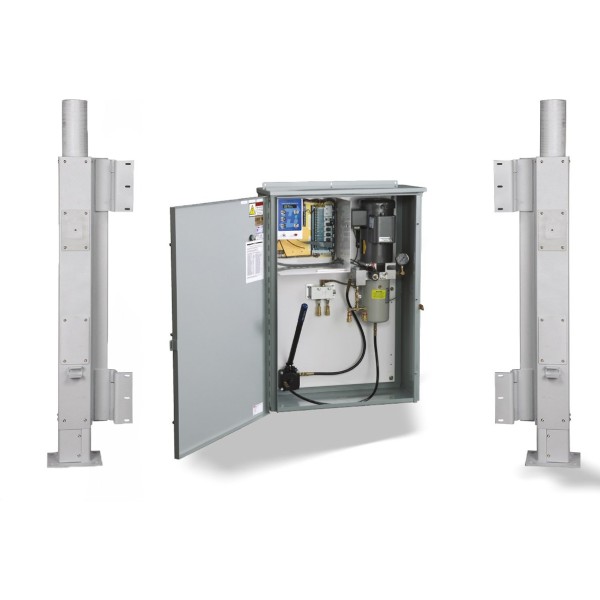

The HySecurity SwingRiser 14 - Twin UPS is an industrial swing gate opener designed and manufactured by HySecurity. SwingRiser 14 is capable of elegant cycling of gate leaves weighing up to 1,000 lb in just 14 seconds. Graceful and elegant gate operation is powered by hydraulic drive. SwingRiser posts are 80 inches tall, and can be configured to be left/right handed and inward/outward swinging. Separate HydraSupply located within 100 ft of the opener contains hydraulic power supply and Smart Touch Controller. This model contains the Uninterruptible Power Supply that will continue up to 100 cycles upon AC power failure. The Twin UPS ensures maximum uptime and reliability in critical applications.

Note: This modular gate opener requires a HydraSupply Unit, ONE of the two DC Power Supply options, & ONE of each Post listed.

Features:

  • Hydraulic drive for smooth operation
  • Supports gate leaves up to 1,000 lb
  • Operates gates in just 14 seconds
  • Posts are 80 inches tall and configurable for different swing directions
  • Separate HydraSupply with hydraulic power and Smart Touch Controller
  • Dual Uninterruptible Power Supplies for critical application reliability

Specifications:

  • Horsepower: 2 HP
  • Gate Length Max: Up To 9 ft Each Leaf
  • Gate Weight Max: 1,000 lbs
  • Open/Close Time: 14 Seconds
  • Finish: Zinc Flame Spray & ASTM B633 SC4 Zinc Plated (Inner Post)
  • Temperature Rating: -40 Degrees F to 158 Degrees F
  • Battery Backup: Included
Read More
Prefer to Call? (888) 378-1127

Questions about part number SWING-RISER-14-UPS-T?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU SWING-RISER-14-UPS-T
Operator Type SwingRiser
UL 325 Usage Class Class I, Class II, Class III, Class IV
Max. Gate Weight 1,000 lbs. /Leaf
Max. Gate Length 9 ft /Leaf
Drive Type Hydraulic
Duty Cycle Continuous Duty
Operator HP 2 HP
Open/Close Time 14 Sec.
Specification Sheet Download PDF file
