HySecurity SwingRiser 19-Twin
Details
HySecurity SwingRiser 19-Twin

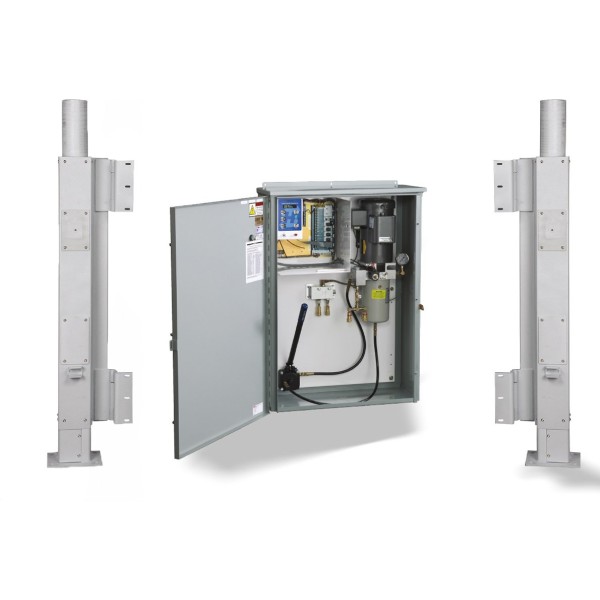

The HySecurity SwingRiser 19 - Twin is an industrial swing gate operator designed and manufactured by HySecurity. SwingRiser 19 is capable of elegant cycling of gate leaves weighing up to 1,600 lb in just 19 seconds. Graceful and elegant gate operation is powered by hydraulic drive. SwingRiser posts are 80 inches tall and can be configured to be left/right handed and inward/outward swinging. Separate HydraSupply located within 100 ft of the operator contains hydraulic power supply and Smart Touch Controller. This model contains the Uninterruptible Power Supply that will continue up to 100 cycles upon AC power failure. Its design ensures reliable performance in various demanding environments.
Features:
- Hydraulic drive for smooth and efficient operation
- Supports gate leaves up to 1,600 lb
- Cycles gates in just 19 seconds
- Posts are 80 inches tall, configurable for different swing directions
- Separate HydraSupply with hydraulic power and Smart Touch Controller
- Uninterruptible Power Supply for up to 100 cycles during power failure
| SKU | SWING-RISER-19-T |
|---|---|
| UL 325 Usage Class | Class I, Class II, Class III, Class IV |
| Max. Gate Weight | 1,600 lbs. /Leaf |
| Max. Gate Length | 16 ft /Leaf |
| Drive Type | Hydraulic |
| Duty Cycle | Continuous Duty |
| Input Voltage | 110/115/120 AC (60Hz, 1 Phase), 220/230/240 AC (60Hz, 1 Phase), 240 AC (60 Hz, 3 Phase), 208 AC (60Hz, 1 Phase), 208 AC (60Hz, 3 Phase), 460/480 AC (60Hz, 3 Phase) |
| Operator HP | 2 HP |
| Open/Close Time | 19 Sec. |
