HySecurity SwingRiser 19-Twin w/ Battery Backup (UPS) - Swing Gate Opener 19s Open/Close Time

HySecurity SwingRiser 19-Twin w/ Battery Backup (UPS) - Swing Gate Opener 19s Open/Close Time

Name: HySecurity SwingRiser 19-Twin w/ Battery Backup (UPS) - Swing Gate Opener 19s Open/Close Time
Brand: DF Supply, Inc.
SKU: SWING-RISER-19-T-UPS
Availability: InStock

SwingRiser 19-Twin UPS - SWING-RISER-19-T-UPS

The HySecurity SwingRiser 19-Twin provides 19-second cycles for 1,600 lb gates and includes a UPS for uninterrupted use. It features customizable 80-inch posts and hydraulic automation for consistent operation. Note: Requires a HydraSupply Unit, one DC Power Supply, and one of each Post listed.

Please review the linked order form(s) to ensure you are selecting the correct sizes, lengths, quantities, and any necessary components for your project. While you may not need to submit the form, it serves as a helpful guide to avoid missing any required items. Orders placed without the appropriate selections may be delayed or require additional follow-up. Contact us if you have any questions before ordering.

Order Form

1 HySecurity Swing Gate Replacement Parts ↓
	HySecurity SwingRiser HRG 222 Post 1 ‑ Standard Height Part: S-SWR-1-D1	$13,142.54 each $13,142.54 each
	HySecurity SwingRiser HRG 222 Post 2 ‑ Standard Height Part: S-SWR-1-D2	$13,142.54 each $13,142.54 each
	HySecurity HydraSupply 2 HP DC Power Supply for Automatic Gate Openers Part: S-HSP-1-84	$19,282.67 each $19,282.67 each

2 HySecurity Slide Gate Replacement Parts ↓
	HySecurity 2 HP DC 115 VAC Power Supply 120 for Automatic Gate Openers Part: DCP2111	$8,996.44 each $8,996.44 each
	HySecurity 2 HP DC 208/230 VAC Power Supply 120 for Automatic Gate Openers Part: DCP2211	$8,996.44 each $8,996.44 each

Details

HySecurity SwingRiser 19-Twin w/ Battery Backup (UPS) - Swing Gate Opener 19s Open/Close Time

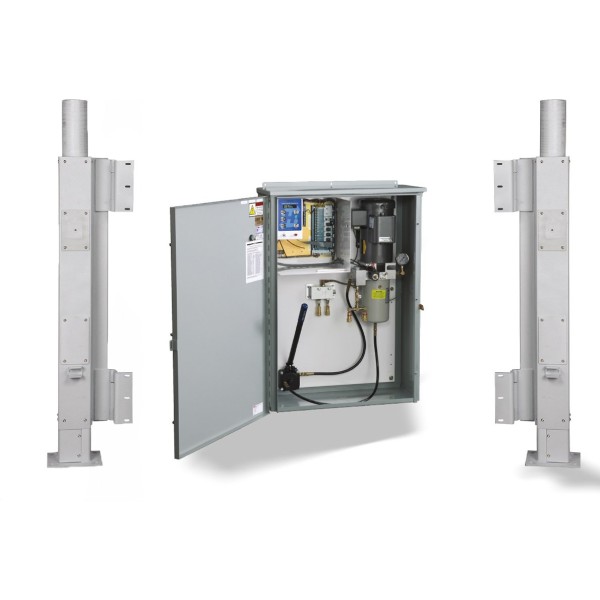

The HySecurity SwingRiser 19 - Twin UPS is an industrial swing gate operator designed and manufactured by HySecurity. SwingRiser 19 is capable of elegant cycling of gate leaves weighing up to 1,600 lb in just 19 seconds. Graceful and elegant gate operation is powered by hydraulic drive. SwingRiser posts are 80 inches tall, and can be configured to be left/right handed and inward/outward swinging. Separate HydraSupply located within 100 ft of the operator contains hydraulic power supply and Smart Touch Controller. This model contains the Uninterruptible Power Supply that will continue up to 100 cycles upon AC power failure. The inclusion of dual UPS enhances the system's resilience and ensures continuous gate operation during extended outages.

Note: This modular gate opener requires a HydraSupply Unit, ONE of the two DC Power Supply options, & ONE of each Post listed.

Features:

Hydraulic drive for smooth operation
Supports gate leaves up to 1,600 lb
Operates gates in just 19 seconds
Posts are 80 inches tall and configurable for different swing directions
Separate HydraSupply with hydraulic power and Smart Touch Controller
Dual Uninterruptible Power Supplies for enhanced operational reliability

Horsepower: 2 HP
Gate Length Max: Up To 16 ft Each Leaf
Gate Weight Max: 1,600 lbs
Open/Close Time: 19 Seconds
Finish: Zinc Flame Spray & ASTM B633 SC4 Zinc Plated (Inner Post)
Temperature Rating: -40 Degrees F to 158 Degrees F
Battery Backup: Included

Prefer to Call? (888) 378-1127

Questions about part number SWING-RISER-19-T-UPS?

Required Fields *

SKU	SWING-RISER-19-T-UPS
Operator Type	HydraSwing
UL 325 Usage Class	Class I, Class II, Class III, Class IV
Max. Gate Weight	1,600 lbs. /Leaf
Max. Gate Length	16 ft /Leaf
Drive Type	Hydraulic
Duty Cycle	Continuous Duty
Operator HP	2 HP
Open/Close Time	19 Sec.
Specification Sheet	Download PDF file
