HySecurity SwingRiser 30-Twin - Swing Gate Opener 30s Open/Close Time

The SwingRiser 30-Twin cycles 3,000 lb gates in 30 seconds with dual hydraulic actuation. Its adjustable posts and UPS make it ideal for high-demand installations. Smart Touch Controller enables easy system programming and control.

Please review the linked order form(s) to ensure you are selecting the correct sizes, lengths, quantities, and any necessary components for your project. While you may not need to submit the form, it serves as a helpful guide to avoid missing any required items. Orders placed without the appropriate selections may be delayed or require additional follow-up. Contact us if you have any questions before ordering.

Order Form
1

HySecurity Swing Gate Replacement Parts

SwingRiser 30-Twin - SWING-RISER-30-T

HySecurity SwingRiser HRG 222 Post 1 ‑ Standard Height

Part: S-SWR-1-D1

$13,142.54 each
$13,142.54 each
SwingRiser 30-Twin - SWING-RISER-30-T

HySecurity SwingRiser HRG 222 Post 2 ‑ Standard Height

Part: S-SWR-1-D2

$13,142.54 each
$13,142.54 each
SwingRiser 30-Twin - SWING-RISER-30-T

HySecurity HydraSupply 2 HP AC Power Supply for Automatic Gate Openers

Part: S-HSP-1-75

$20,253.47 each
$20,253.47 each

Details

HySecurity SwingRiser 30-Twin - Swing Gate Opener 30s Open/Close Time

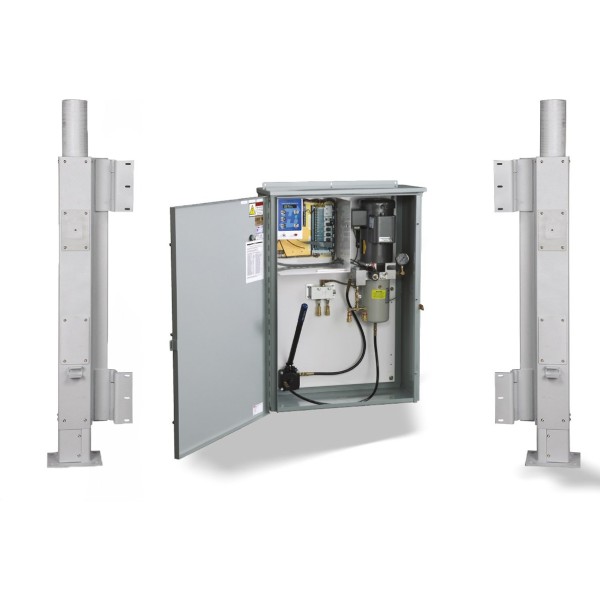

The SwingRiser 30 - Twin is an industrial swing gate opener designed and manufactured by HySecurity. SwingRiser 30 is capable of elegant cycling of gate leaves weighing up to 3,000 lb in just 30 seconds. Graceful and elegant gate operation is powered by hydraulic drive. SwingRiser posts are 80 inches tall and can be configured to be left/right handed and inward/outward swinging. Separate HydraSupply located within 100 ft of the opener contains hydraulic power supply and Smart Touch Controller. This model contains the Uninterruptible Power Supply that will continue up to 100 cycles upon AC power failure. The dual UPS configuration enhances system reliability and ensures continued gate operation during extended power outages.

Features:

  • Hydraulic drive for smooth and efficient operation
  • Supports gate leaves up to 3,000 lb
  • Cycles gates in just 30 seconds
  • Posts are 80 inches tall, configurable for different swing directions
  • Separate HydraSupply with hydraulic power and Smart Touch Controller
  • Dual Uninterruptible Power Supplies for enhanced reliability

Specifications:

  • Horsepower: 2 HP
  • Gate Length Max: Up To 16 ft Each Leaf
  • Gate Weight Max: 3,000 lbs
  • Open/Close Time: 30 Seconds
  • Finish: Zinc Flame Spray & ASTM B633 SC4 Zinc Plated (Inner Post)
  • Temperature Rating: -40 Degrees F to 158 Degrees F
Read More
Prefer to Call? (888) 378-1127

Questions about part number SWING-RISER-30-T?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU SWING-RISER-30-T
Operator Type HydraSwing
UL 325 Usage Class Class I, Class II, Class III, Class IV
Max. Gate Weight 3,000 lbs. /Leaf
Max. Gate Length 16 ft /Leaf
Drive Type Hydraulic
Duty Cycle Continuous Duty
Input Voltage 110/115/120 AC (60Hz, 1 Phase), 220/230/240 AC (60Hz, 1 Phase), 240 AC (60 Hz, 3 Phase), 208 AC (60Hz, 1 Phase), 208 AC (60Hz, 3 Phase), 460/480 AC (60Hz, 3 Phase)
Operator HP 2 HP
Open/Close Time 30 Sec.
Specification Sheet Download PDF file
