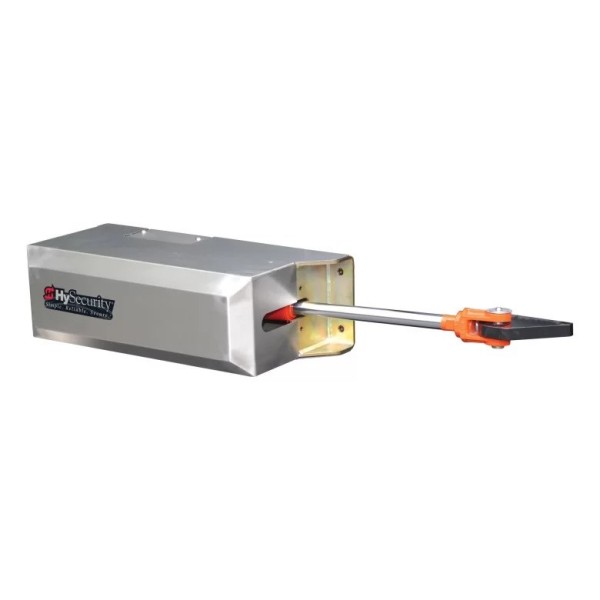

HySecurity HydraSwing 40 Hydraulic Swing Gate Operator (4,000 lbs Max.)

HydraSwing 40 - HYDRA-SWING-40
HydraSwing 40 - HYDRA-SWING-40
HydraSwing 40 - HYDRA-SWING-40
HydraSwing 40 - HYDRA-SWING-40

The HydraSwing 40 is a heavy-duty hydraulic swing gate operator designed for industrial and commercial sites. It supports single gate leaves up to 4,000 lbs and is ideal for high-security access points. Built with a durable chassis and Smart Touch controls, it offers consistent performance and simple configuration.

Please Note: You will need a Drive Unit AND a Power Supply for this opener to function properly. When ordering, please also call to specify the voltage of your power supply OR you can click on the power supply and order it separately, where you can indicate the voltage. If you have any questions about what you may need, please review the order form below or Contact Us to consult with an expert. We are happy to assist. Order Form

1

Gate Opener Drive Units

↓
HydraSwing 40 - HYDRA-SWING-40

HySecurity Drive Unit for HydraSwing 40 Automatic Swing Gate Opener

Part: S-HSP-1-AE
$12,745.63 each
$12,745.63 each
2

HySecurity Gate Power Supply

↓
HydraSwing 40 - HYDRA-SWING-40

HySecurity Power Unit for HydraSwing 40 Industrial Automatic Swing Gate Opener

Part: S-HSW-1-HF
$6,341.13 each
$6,341.13 each

Details

HySecurity HydraSwing 40 Hydraulic Swing Gate Operator (4,000 lbs Max.)

The HySecurity HydraSwing 40 is a rugged hydraulic swing gate opener built for industrial and commercial access control. Designed for single gate leaves up to 4,000 lbs, this in-ground hydraulic gate drive delivers high-strength performance and quiet operation. It features a Smart Touch Controller with 70+ configurable settings for flexible and secure automation. Ideal for sites requiring a compact yet high-security swing gate actuator.

Key Features:

  • HySecurity HydraSwing gate operator with in-ground hydraulic drive
  • Supports single leaf gates up to 4,000 lbs
  • Smart Touch Controller for system diagnostics and configuration
  • Heavy-duty swing gate operator system for industrial facilities
  • Designed for long-term, high-cycle use

Specifications:

  • Max gate weight: 4,000 lbs
  • Mount type: In-ground installation
  • Drive type: Hydraulic
  • Controller: Smart Touch with PC interface via S.T.A.R.T. software
  • Power input: 115/208/230V single-phase, 60 Hz
  • Cycle rating: Continuous duty
  • Warranty: 5 years

Please Note: You will need a Drive Unit AND a Power Supply for this opener to function properly. When ordering, please also call to specify the voltage of your power supply OR you can click on the power supply and order it separately, where you can indicate the voltage. If you have any questions about what you may need, please review the order form below or Contact Us to consult with an expert. We are happy to assist. Order Form

HydraSwing Opener Model Comparison

Model HydraSwing 40 HydraSwing 40 Twin HydraSwing 40F HydraSwing 40F Twin HydraSwing 80F HydraSwing 150
Single or Twin Single leaf Twin (2 leaves) Single leaf Twin (2 leaves) Single leaf Single leaf
Open/Close Time 15-20 seconds, field adjustable 15-20 seconds, field adjustable 10-15 seconds, field adjustable 10-15 seconds, field adjustable 15-25 seconds, field adjustable 20-30 seconds, field adjustable
Gate Length Max. up to 24 ft (7.3 m) up to 16 ft (5 m) wide each leaf up to 16 ft (5 m) wide up to 16 ft (5 m) wide each leaf up to 30 ft (9 m) wide up to 40 ft (12 m) wide
Gate Weight Max. 4,000 lb (1,814 kg) 4,000 lb (1,814 kg) / leaf 4,000 lb (1,814 kg) 4,000 lb (1,814 kg) / leaf 8,000 lb (3,629 kg) 15,000 lb (6,804 kg)
ETL Listed (UL 325) Usage Class I, II, III, IV Usage Class III, IV
Warranty 5 year w/product registration
Prefer to Call? (888) 378-1127

Questions about part number HYDRA-SWING-40?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU HYDRA-SWING-40
Operator Type HydraSwing
UL 325 Usage Class Class I, Class II, Class III, Class IV
Max. Gate Weight 4,000 lbs.
Drive Unit Voltage 208 AC (60 Hz, 1 Phase), 208 AC (60 Hz, 3 Phase), 220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase), 240 AC (60 Hz, 3 Phase), 400 AC (50 Hz, 3 Phase), 460/480 AC (60 Hz, 3 Phase)
Max. Gate Length 24 ft
Finish Stainless Steel
Swing Gate Operators Single Leaf
Drive Type VFD Controlled Hydraulics
Duty Cycle Continuous Duty
Input Voltage 220/230/240 AC (60Hz, 1 Phase), 240 AC (60 Hz, 3 Phase), 208 AC (60Hz, 1 Phase), 208 AC (60Hz, 3 Phase), 460/480 AC (60Hz, 3 Phase)
Open/Close Time 15 to 20 Sec.
Specification Sheet Download PDF file
