HySecurity HydraSwing 40 Twin Swing Gate Operator (4,000 lbs per Leaf)

HySecurity HydraSwing 40 Twin Swing Gate Operator (4,000 lbs per Leaf)

HydraSwing 40 Twin

HydraSwing 40 Twin

HydraSwing 40 Twin

HydraSwing 40 Twin

HydraSwing 40 Twin

The HydraSwing 40 Twin is a dual-arm hydraulic gate system engineered to manage large paired gates up to 4,000 lbs each. Perfect for wide-lane entries and secure compounds, it ensures synchronized, reliable motion. Its smart controls and robust construction make it ideal for perimeter defense.

Please Note: You will need one of each Drive Unit AND a Power Supply for this opener to function properly. When ordering, please also call to specify the voltage of your power supply OR you can click on the power supply and order it separately, where you can indicate the voltage. If you have any questions about what you may need, please review the order form below or Contact Us to consult with an expert. We are happy to assist. Order Form

1 HySecurity Gate Power Supply ↓
	HySecurity Power Unit for HydraSwing 40 Twin Automatic Swing Gate Opener Part: S-HSP-1-AC	$16,737.33 each $16,737.33 each

2 Gate Opener Drive Units ↓
	HySecurity HydraSwing 40 Twin 2 Industrial Automatic Swing Gate Opener Part: S-HSW-1-HD	$6,341.13 each $6,341.13 each
	HySecurity Drive Unit for HydraSwing 40 Twin 1 Industrial Automatic Swing Gate Opener Part: S-HSW-1-HC	$6,341.13 each $6,341.13 each

Details

HySecurity HydraSwing 40 Twin Swing Gate Operator (4,000 lbs per Leaf)

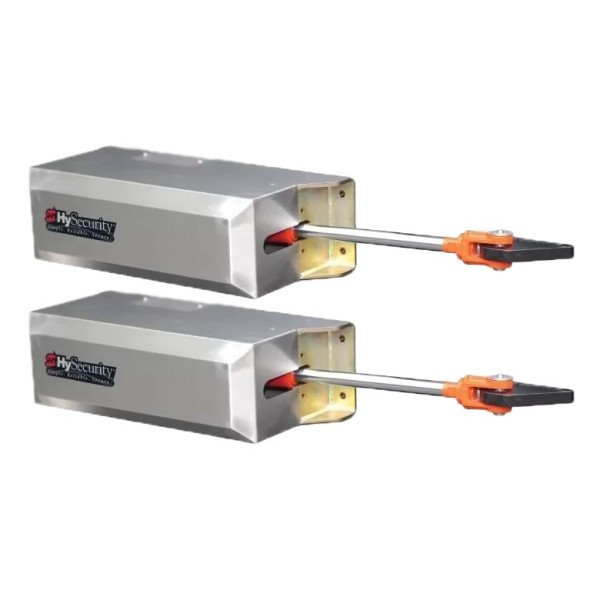

The HydraSwing 40 Twin is a dual-arm hydraulic gate operator designed for high-security industrial entryways and synchronized automation. It manages two leaves up to 4,000 lbs each, using a Smart Touch Controller for precise control and reliability. This twin hydraswing configuration is well-suited for correctional facilities, ports, and wide-lane logistics hubs. Built for high-cycle durability, it delivers long-term industrial swing gate automation with minimal maintenance.

Key Features:

High-security swing gate actuator with dual-leaf synchronization
Single or twin HydraSwing configuration for custom layouts
Smart Touch Controller with advanced control logic
Hydraulic drive system for smooth and powerful operation
Engineered for correctional and government-grade facilities

Specifications:

Max gate weight: 4,000 lbs per gate leaf
Configuration: Dual-arm (twin)
Drive type: In-ground hydraulic gate drive
Power input: 115/208/230V single-phase, 60 Hz
User interface: Smart Touch display and keypad
Cycle rating: Continuous duty
Warranty: 5 years

Please Note: You will need one of each Drive Unit AND a Power Supply for this opener to function properly. When ordering, please also call to specify the voltage of your power supply OR you can click on the power supply and order it separately, where you can indicate the voltage. If you have any questions about what you may need, please review the order form below or Contact Us to consult with an expert. We are happy to assist. Order Form

HydraSwing Opener Model Comparison

Model	HydraSwing 40	HydraSwing 40 Twin	HydraSwing 40F	HydraSwing 40F Twin	HydraSwing 80F	HydraSwing 150
Single or Twin	Single leaf	Twin (2 leaves)	Single leaf	Twin (2 leaves)	Single leaf	Single leaf
Open/Close Time	15-20 seconds, field adjustable	15-20 seconds, field adjustable	10-15 seconds, field adjustable	10-15 seconds, field adjustable	15-25 seconds, field adjustable	20-30 seconds, field adjustable
Gate Length Max.	up to 24 ft (7.3 m)	up to 16 ft (5 m) wide each leaf	up to 16 ft (5 m) wide	up to 16 ft (5 m) wide each leaf	up to 30 ft (9 m) wide	up to 40 ft (12 m) wide
Gate Weight Max.	4,000 lb (1,814 kg)	4,000 lb (1,814 kg) / leaf	4,000 lb (1,814 kg)	4,000 lb (1,814 kg) / leaf	8,000 lb (3,629 kg)	15,000 lb (6,804 kg)
ETL Listed (UL 325)	Usage Class I, II, III, IV				Usage Class III, IV
Warranty	5 year w/product registration

Prefer to Call? (888) 378-1127

Questions about part number HYDRA-SWING-40-T?

Required Fields *

SKU	HYDRA-SWING-40-T
Operator Type	HydraSwing
UL 325 Usage Class	Class I, Class II, Class III, Class IV
Max. Gate Weight	4,000 lbs./Leaf
Drive Unit Voltage	208 AC (60 Hz, 1 Phase), 208 AC (60 Hz, 3 Phase), 220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase), 240 AC (60 Hz, 3 Phase), 400 AC (50 Hz, 3 Phase), 460/480 AC (60 Hz, 3 Phase)
Max. Gate Length	16 ft /Leaf
Finish	Stainless Steel
Swing Gate Operators	Twin Leaf
Drive Type	VFD Controlled Hydraulics
Duty Cycle	Continuous Duty
Input Voltage	220/230/240 AC (60Hz, 1 Phase), 240 AC (60 Hz, 3 Phase), 208 AC (60Hz, 1 Phase), 208 AC (60Hz, 3 Phase), 460/480 AC (60Hz, 3 Phase)
Open/Close Time	15 to 20 Sec.
Specification Sheet	Download PDF file
