HySecurity HydraSwing 40F Twin Swing Gate Operator (Fast, 4,000 lbs per Leaf)

The HydraSwing 40F Twin is a fast-acting, dual-leaf hydraulic gate system built for sites with high entry/exit frequency. It handles up to 4,000 lbs per gate leaf and operates with synchronized efficiency. This model combines advanced automation with rugged performance for demanding security needs.

Please Note: You will need one of each Drive Unit AND a Power Supply for this opener to function properly. When ordering, please also call to specify the voltage of your power supply OR you can click on the power supply and order it separately, where you can indicate the voltage. If you have any questions about what you may need, please review the order form below or Contact Us to consult with an expert. We are happy to assist. Order Form

1

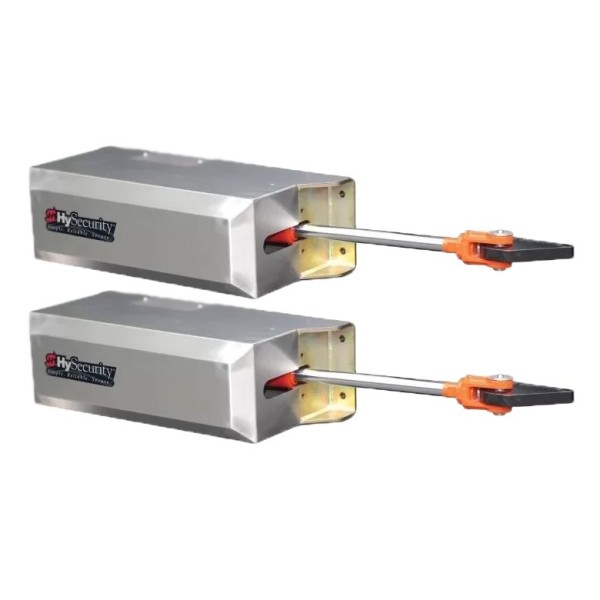

Gate Opener Drive Units

HydraSwing 40F - HYDRA-SWING-40-F-T

HySecurity HydraSwing 40 Twin 2 Industrial Automatic Swing Gate Opener

Part: S-HSW-1-HD

$6,341.13 each
$6,341.13 each
HydraSwing 40F - HYDRA-SWING-40-F-T

HySecurity Drive Unit for HydraSwing 40 Twin 1 Industrial Automatic Swing Gate Opener

Part: S-HSW-1-HC

$6,341.13 each
$6,341.13 each
2

HySecurity Gate Power Supply

HydraSwing 40F - HYDRA-SWING-40-F-T

HySecurity Power Unit for HydraSwing 40F Twin Automatic Swing Gate Openers

Part: S-HSP-1-AH

$18,486.66 each
$18,486.66 each

Details

HySecurity HydraSwing 40F Twin Swing Gate Operator (Fast, 4,000 lbs per Leaf)

The HydraSwing 40F Twin combines dual-leaf swing gate automation with fast actuation for time-sensitive, high-security access points. Supporting gates up to 4,000 lbs per leaf, it is optimized for environments requiring both speed and robust hydraulic performance. With twin in-ground hydraulic gate drives and integrated Smart Touch control, it delivers high-reliability industrial swing gate automation. It's well-suited for correctional facilities, emergency response perimeters, and large-scale logistics centers.

Key Features:

  • Fast-acting dual-leaf hydraulic swing gate operator
  • Designed for industrial and correctional access control
  • Heavy-duty construction with in-ground hydraulic gate drives
  • Smart Touch Controller for diagnostics and configuration
  • Ideal for high-traffic, security-critical environments

Specifications:

  • Max gate weight: 4,000 lbs per leaf
  • Drive type: Twin in-ground hydraulic system
  • Cycle speed: Fast operation
  • Controller: Smart Touch interface with PC connection
  • Power input: 115/208/230V, single-phase
  • Usage: Continuous duty rated
  • Warranty: 5 years

Please Note: You will need one of each Drive Unit AND a Power Supply for this opener to function properly. When ordering, please also call to specify the voltage of your power supply OR you can click on the power supply and order it separately, where you can indicate the voltage. If you have any questions about what you may need, please review the order form below or Contact Us to consult with an expert. We are happy to assist. Order Form

HydraSwing Opener Model Comparison

Model HydraSwing 40 HydraSwing 40 Twin HydraSwing 40F HydraSwing 40F Twin HydraSwing 80F HydraSwing 150
Single or Twin Single leaf Twin (2 leaves) Single leaf Twin (2 leaves) Single leaf Single leaf
Open/Close Time 15-20 seconds, field adjustable 15-20 seconds, field adjustable 10-15 seconds, field adjustable 10-15 seconds, field adjustable 15-25 seconds, field adjustable 20-30 seconds, field adjustable
Gate Length Max. up to 24 ft (7.3 m) up to 16 ft (5 m) wide each leaf up to 16 ft (5 m) wide up to 16 ft (5 m) wide each leaf up to 30 ft (9 m) wide up to 40 ft (12 m) wide
Gate Weight Max. 4,000 lb (1,814 kg) 4,000 lb (1,814 kg) / leaf 4,000 lb (1,814 kg) 4,000 lb (1,814 kg) / leaf 8,000 lb (3,629 kg) 15,000 lb (6,804 kg)
ETL Listed (UL 325) Usage Class I, II, III, IV Usage Class III, IV
Warranty 5 year w/product registration
Prefer to Call? (888) 378-1127

Questions about part number HYDRA-SWING-40-F-T?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU HYDRA-SWING-40-F-T
Operator Type HydraSwing
UL 325 Usage Class Class I, Class II, Class III, Class IV
Max. Gate Weight 4,000 lbs./Leaf
Drive Unit Voltage 208 AC (60 Hz, 1 Phase), 208 AC (60 Hz, 3 Phase), 220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase), 240 AC (60 Hz, 3 Phase), 400 AC (50 Hz, 3 Phase), 460/480 AC (60 Hz, 3 Phase)
Max. Gate Length 16 ft /Leaf
Finish Stainless Steel
Swing Gate Operators Twin Leaf
Drive Type VFD Controlled Hydraulics
Duty Cycle Continuous Duty
Input Voltage 220/230/240 AC (60Hz, 1 Phase), 240 AC (60 Hz, 3 Phase), 208 AC (60Hz, 1 Phase), 208 AC (60Hz, 3 Phase), 460/480 AC (60Hz, 3 Phase)
Open/Close Time 15 to 20 Sec.
Specification Sheet Download PDF file
