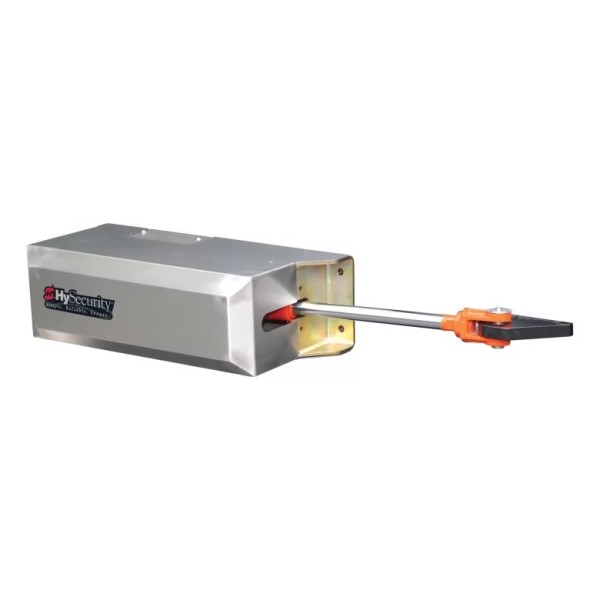

HySecurity HydraSwing 40F Hydraulic Swing Gate Operator (Fast, 4,000 lbs Max.)

The HydraSwing 40F delivers rapid swing gate automation for high-traffic security zones. Designed for gates up to 4,000 lbs, the ?F? model provides faster open/close cycles while maintaining hydraulic strength. It's a powerful solution for environments where speed and reliability are critical.

Please Note: You will need a Drive Unit AND a Power Supply for this opener to function properly. When ordering, please also call to specify the voltage of your power supply OR you can click on the power supply and order it separately, where you can indicate the voltage. If you have any questions about what you may need, please review the order form below or Contact Us to consult with an expert. We are happy to assist. Order Form

1

HySecurity Gate Power Supply

HydraSwing 40F - HYDRA-SWING-40-F

HySecurity Power Unit for HydraSwing 40 Automatic Swing Gate Openers

Part: S-HSW-1-HB

$6,341.13 each
$6,341.13 each
2

Gate Opener Drive Units

HydraSwing 40F - HYDRA-SWING-40-F

HySecurity Drive Unit for HydraSwing 40 Automatic Swing Gate Opener

Part: S-HSP-1-AD

$13,602.09 each
$13,602.09 each

Details

HySecurity HydraSwing 40F Hydraulic Swing Gate Operator (Fast, 4,000 lbs Max.)

The HySecurity HydraSwing 40F is a fast-acting hydraulic swing gate opener designed for high-frequency commercial and government sites. Built to open gates up to 4,000 lbs with reduced cycle times, it offers both speed and strength. Its compact in-ground hydraulic gate drive ensures smooth motion and long service life even under constant use. This is the ideal solution for sites requiring high-speed, high-security swing gate actuation.

Key Features:

  • Fast model for applications requiring quick gate operation
  • Hydraulic swing gate opener with in-ground installation
  • Supports up to 4,000 lbs gate leaves
  • Smart Touch Controller with over 70 programmable settings
  • Ideal for secure government or logistics entry points

Specifications:

  • Max gate weight: 4,000 lbs
  • Drive type: Fast-cycle hydraulic drive
  • Mount type: In-ground
  • Controller: Smart Touch with PC and network interface
  • Power input: 115/208/230V single-phase
  • Operation type: Continuous duty
  • Warranty: 5 years

Please Note: You will need a Drive Unit AND a Power Supply for this opener to function properly. When ordering, please also call to specify the voltage of your power supply OR you can click on the power supply and order it separately, where you can indicate the voltage. If you have any questions about what you may need, please review the order form below or Contact Us to consult with an expert. We are happy to assist. Order Form

HydraSwing Opener Model Comparison

Model HydraSwing 40 HydraSwing 40 Twin HydraSwing 40F HydraSwing 40F Twin HydraSwing 80F HydraSwing 150
Single or Twin Single leaf Twin (2 leaves) Single leaf Twin (2 leaves) Single leaf Single leaf
Open/Close Time 15-20 seconds, field adjustable 15-20 seconds, field adjustable 10-15 seconds, field adjustable 10-15 seconds, field adjustable 15-25 seconds, field adjustable 20-30 seconds, field adjustable
Gate Length Max. up to 24 ft (7.3 m) up to 16 ft (5 m) wide each leaf up to 16 ft (5 m) wide up to 16 ft (5 m) wide each leaf up to 30 ft (9 m) wide up to 40 ft (12 m) wide
Gate Weight Max. 4,000 lb (1,814 kg) 4,000 lb (1,814 kg) / leaf 4,000 lb (1,814 kg) 4,000 lb (1,814 kg) / leaf 8,000 lb (3,629 kg) 15,000 lb (6,804 kg)
ETL Listed (UL 325) Usage Class I, II, III, IV Usage Class III, IV
Warranty 5 year w/product registration
Prefer to Call? (888) 378-1127

Questions about part number HYDRA-SWING-40-F?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU HYDRA-SWING-40-F
Operator Type HydraSwing
UL 325 Usage Class Class I, Class II, Class III, Class IV
Max. Gate Weight 4,000 lbs.
Drive Unit Voltage 208 AC (60 Hz, 1 Phase), 208 AC (60 Hz, 3 Phase), 220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase), 240 AC (60 Hz, 3 Phase), 400 AC (50 Hz, 3 Phase), 460/480 AC (60 Hz, 3 Phase)
Max. Gate Length 16 ft
Finish Stainless Steel
Swing Gate Operators Single Leaf
Drive Type VFD Controlled Hydraulics
Duty Cycle Continuous Duty
Input Voltage 220/230/240 AC (60Hz, 1 Phase), 240 AC (60 Hz, 3 Phase), 208 AC (60Hz, 1 Phase), 208 AC (60Hz, 3 Phase), 460/480 AC (60Hz, 3 Phase)
Open/Close Time 15 to 20 Sec.
Specification Sheet Download PDF file
