HySecurity HydraWedge SM50 Twin UPS Hydraulic Anti-Ram Vehicle Barrier Wedge

Details

HySecurity HydraWedge SM50 Twin UPS Hydraulic Anti-Ram Vehicle Barrier Wedge

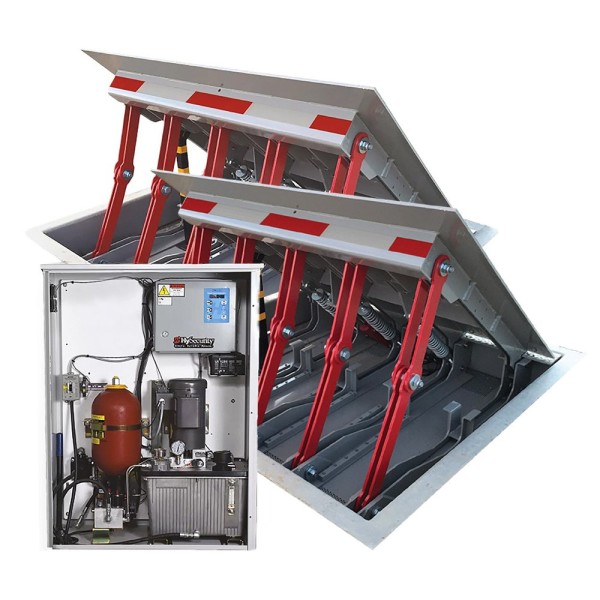

The HySecurity HydraWedge SM50 Twin UPS is a high-security bi-parting anti-ram wedge barrier engineered to protect critical infrastructure and secure facilities worldwide. This barrier wedge is certified to some of the most demanding domestic and international crash standards, including ASTM M50-P1, IWA 14-1, and PAS 68, ensuring maximum vehicle impact resistance. The Twin UPS configuration allows continued operation during power outages through its integrated DC Power Supply 120 and large-capacity battery backup system. Its shallow foundation requirement, fast emergency operation, and rugged hydraulic design make it ideal for embassies, airports, government buildings, military bases, and high-security commercial sites.

Features

• Crash certified to ASTM F2656 M50-P1, IWA 14-1, and PAS 68 with zero penetration
• Continuous duty cycle: up to 400 cycles/hour (shared between wedges)
• Uninterruptible power supply allows hundreds of cycles after AC power loss
• Hydraulic drive system with 4 HP motor and hand pump manual backup
• Emergency fast open/close in as little as 1 second
• Multiple plate width configurations for various lane sizes
• Powder coated steel chassis, salt spray tested to 2,000 hours
• Foundation requires only 300 mm (1 ft) depth, reducing installation costs
• ETL certified control panel to UL 508A
• 5-year warranty on electronics and hydraulics; 2-year warranty on mechanical wedge

Specifications

• Crash Certification: ASTM F2656 M50-P1, IWA 14-1, PAS 68
• Duty Cycle: 400 cycles/hour (split between wedges)
• Drive Type: Hydraulic
• Horsepower: 4 HP
• UPS Backup: Hundreds of cycles via HyCharger DC power supply
• Accumulator Backup: 4 additional accumulator cycles with 2.5 gallon accumulator
• Open/Close Time: 3 seconds (normal), 1 second (EFO)
• Manual Operation: Hand pump (standard)
• Plate Widths: 2m, 2.5m, 3m, 3.5m, 4m (6.5, 8, 10, 11.5, 13 ft)
• Plate Height (Raised): 1000 mm (3.3 ft)
• Excavation Width: Plate width + 700 mm (27.5 in)
• Excavation Length: 3.7 m (12 ft)
• Excavation Depth: 300 mm (1 ft)
• Wheel Load Capacity: 22,000 lb per wheel (44,000 lb axle load)
• Power Input (1 Phase): 115V 60/50Hz 23A or 208-230V 60/50Hz 11.5A
• Batteries: Two 110 Ah batteries (in DC UPS enclosure)
• Temperature Range: -40°F to 158°F (with biodegradable fluid option -10°F to 158°F)
• Communication: RS-232, RS-485, Ethernet/fiber via optional HyNet™ Gateway
• User Controls: Smart Touch controller with 70+ configurable settings
• Relays: 3 configurable user relays (1 solid-state, 2 electromechanical)
• Enclosure: HydraSupply XL (36w x 48h x 16d inch)
• Finish: Powder coated, 2,000-hour salt spray tested
• Foundation: 300 mm (1 ft) depth; less than 480 lb rebar and 4 cu yds concrete per wedge
• Certification: UL 508A (control panel)
• Warranty: 5 years (electronics & hydraulics), 2 years (mechanical wedge)

*Wedge manufactured in metric scale. Use metric for precision measurements. All imperial measurements rounded to nearest foot.

**115V input requires 30A branch circuit.

***UPS cycle capacity depends on battery health, load, and environmental conditions.
