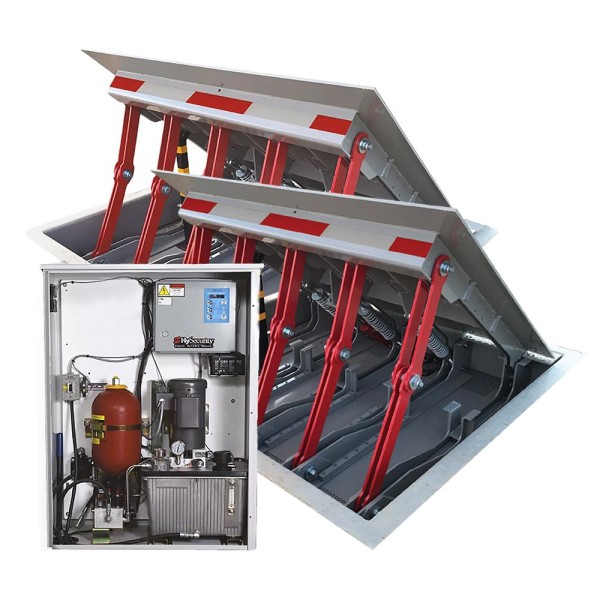

HySecurity HydraWedge SM50 Twin UPS Hydraulic Anti-Ram Vehicle Barrier Wedge
The HySecurity HydraWedge SM50 Twin UPS is a bi-parting high-security anti-ram wedge barrier engineered to protect high-risk facilities worldwide. Certified to the most rigorous domestic and international crash standards, including ASTM M50-P1, IWA 14-1, and PAS 68, the HydraWedge SM50 Twin UPS offers maximum protection with zero penetration. The Twin UPS configuration provides full operational redundancy and hundreds of cycles during power outages via its integrated DC Power Supply 120 UPS system. Featuring hydraulic drive technology, shallow foundation depth, rapid emergency operation, and durable powder-coated steel construction, this system is ideal for securing embassies, military bases, government complexes, airports, and commercial high-security sites requiring bi-directional access control.
Features
- Crash certified to ASTM F2656 M50-P1, IWA 14-1, PAS 68 with zero penetration
- Continuous duty cycle: up to 400 cycles/hour (split between wedges)
- Uninterruptible power supply provides hundreds of cycles after AC power loss
- Hydraulic drive system with 4 HP motor and hand pump manual backup
- Emergency fast open/close operation in as little as 1 second
- Multiple plate width configurations available to match lane width requirements
- Powder-coated chassis, salt spray tested for 2,000 hours
- Shallow 300 mm (1 ft) foundation simplifies installation
- ETL certified control panel to UL 508A
- 5-year warranty on electronics and hydraulics; 2-year warranty on mechanical wedge
Specifications
- Crash Certification: ASTM F2656 M50-P1, IWA 14-1, PAS 68
- Duty Cycle: 400 cycles/hour (shared between wedges)
- Drive Type: Hydraulic
- Horsepower: 4 HP
- UPS Backup: Hundreds of cycles via HyCharger DC power supply
- Accumulator Backup: 4 accumulator cycles with 2.5 gallon accumulator
- Open/Close Time: 3 seconds (normal), 1 second (EFO)
- Manual Operation: Hand pump (standard)
- Plate Widths: 2m, 2.5m, 3m, 3.5m, 4m (6.5, 8, 10, 11.5, 13 ft)
- Plate Height (Raised): 1000 mm (3.3 ft)
- Excavation Width: Plate width + 700 mm (27.5 in)
- Excavation Length: 3.7 m (12 ft)
- Excavation Depth: 300 mm (1 ft)
- Wheel Load Capacity: 22,000 lb per wheel (44,000 lb axle load)
- Power Input (1 Phase): 115V 60/50Hz 23A or 208-230V 60/50Hz 11.5A
- Batteries: Two 110 Ah batteries (in separate DC UPS enclosure)
- Temperature Range: -40°F to 158°F (with biodegradable fluid option -10°F to 158°F)
- Communication: RS-232, RS-485, Ethernet/fiber via optional HyNet Gateway
- User Controls: Smart Touch controller with 70+ configurable settings
- Relays: 3 configurable user relays (1 solid-state, 2 electromechanical); Hy8Relay optional for 8 additional outputs
- Enclosure: HydraSupply XL (36w x 48h x 16d inch), optional NEMA 4X DC Power Supply (30w x 30h x 12d inch)
- Finish: Powder coated, 2,000-hour salt spray tested
- Foundation: 300 mm (1 ft) depth; less than 480 lb rebar and 4 cubic yds concrete per wedge
- Certification: UL 508A (control panel)
- Warranty: 5 years (electronics & hydraulics), 2 years (mechanical wedge)
*Wedge manufactured in metric scale. Use metric for precision measurements. All imperial measurements rounded to nearest foot.
**300 mm excavation consists of 200 mm reinforcing concrete + 100 mm roadway surface of any material.
***UPS cycle capacity varies depending on battery health, load, ambient temperature, and usage conditions.
****115V input requires 30A branch circuit.
HydraWedge Model Comparison
HydraWedge SM50 | HydraWedge SM50 UPS (Low Voltage) | HydraWedge SM50 Twin | HydraWedge SM50 Twin UPS (Low Voltage) | HydraWedge SM50 UPS (High Voltage) | HydraWedge SM50 Twin UPS (High Voltage) | |
Drive Type | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
Horsepower | 2 hp | 2 hp | 5 hp | 4 hp | 2 hp | 4 hp |
Duty Cycle | 300 cycles/hr | 300 cycles/hr | 400 cycles/hr (divided) | 400 cycles/hr (divided) | 300 cycles/hr | 400 cycles/hr (divided) |
Open/Close Time | 3 seconds | 3 seconds | 3 seconds | 3 seconds | 3 seconds | 3 seconds |
Emergency Fast Operation (EFO) | 1 second | 1 second | 1 second | 1 second | 1 second | 1 second |
UPS Backup | Accumulator: 6 cycles | UPS: Hundreds of cycles; Accumulator: 4 cycles | Accumulator: 6 cycles (divided) | UPS: Hundreds of cycles; Accumulator: 4 cycles (divided) | UPS: Hundreds of cycles; Accumulator: 4 cycles | UPS: Hundreds of cycles; Accumulator: 4 cycles (divided) |
Power Requirements | 1 Phase: 208/230V 60Hz; 220V 50Hz 3 Phase: 208/230/460V; 220/380/440V 50Hz |
115V 60/50Hz | 1 Phase: 230V 60Hz; 220V 50Hz 3 Phase: 208/230/460V; 220/380/440V 50Hz |
115V 60/50Hz | 208-230V 60/50Hz | 208-230V 60/50Hz |
Crash Certification | ASTM F2656 M50-P1; IWA 14-1; PAS68 | ASTM F2656 M50-P1; IWA 14-1; PAS68 | ASTM F2656 M50-P1; IWA 14-1; PAS68 | ASTM F2656 M50-P1; IWA 14-1; PAS68 | ASTM F2656 M50-P1; IWA 14-1; PAS68 | ASTM F2656 M50-P1; IWA 14-1; PAS68 |
