HySecurity SwingRiser 14 - Swing Gate Opener 14s Open/Close Time

HySecurity SwingRiser 14 - Swing Gate Opener 14s Open/Close Time

Name: HySecurity SwingRiser 14 - Swing Gate Opener 14s Open/Close Time
Brand: DF Supply, Inc.
SKU: SWING-RISER-14
Availability: InStock

The SwingRiser 14 cycles 1,000 lb gates in just 14 seconds using hydraulic automation. Its 80-inch posts are highly configurable for a precise installation fit. Easy setup and control are enabled through the intuitive Smart Touch Controller.

Please review the linked order form(s) to ensure you are selecting the correct sizes, lengths, quantities, and any necessary components for your project. While you may not need to submit the form, it serves as a helpful guide to avoid missing any required items. Orders placed without the appropriate selections may be delayed or require additional follow-up. Contact us if you have any questions before ordering.

Order Form

1 HySecurity Swing Gate Replacement Parts ↓
	HySecurity HydraSupply AC 1 HP Power Supply for Automatic Gate Openers Part: S-HSP-1-70	$11,680.88 each $11,680.88 each
	HySecurity SwingRiser HRG 220 Post ‑ Standard Height Part: S-SWR-1-D0	$13,142.54 each $13,142.54 each

Details

HySecurity SwingRiser 14 - Swing Gate Opener 14s Open/Close Time

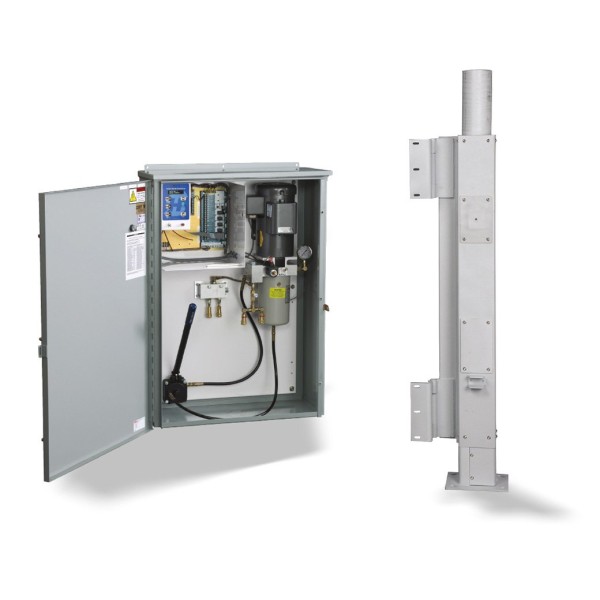

The SwingRiser 14 is an industrial swing gate operator designed and manufactured by HySecurity. SwingRiser 14 is capable of elegant cycling of gate leaves weighing up to 1,000 lb in just 14 seconds. Graceful and elegant gate operation is powered by hydraulic drive. SwingRiser posts are 80 inches tall, and can be configured to be left/right handed and inward/outward swinging. Separate HydraSupply located within 100 ft of the operator contains hydraulic power supply and Smart Touch Controller. This model is ideal for facilities requiring robust and reliable gate operation in various environments.

Features:

Hydraulic drive for smooth operation
Supports gate leaves up to 1,000 lb
Operates gates in just 14 seconds
Posts are 80 inches tall and configurable for different swing directions
Separate HydraSupply with hydraulic power and Smart Touch Controller

Specifications:

Horsepower: 1 HP
Gate Length Max: Up To 9 ft
Gate Weight Max: 1,000 lbs
Open/Close Time: 14 Seconds
Finish: Zinc Flame Spray & ASTM B633 SC4 Zinc Plated (Inner Post)
Temperature Rating: -40 Degrees F to 158 Degrees F

Prefer to Call? (888) 378-1127

Questions about part number SWING-RISER-14?

Required Fields *

SKU	SWING-RISER-14
Operator Type	HydraSwing
UL 325 Usage Class	Class I, Class II, Class III, Class IV
Max. Gate Weight	1,000 lbs.
Max. Gate Length	9 ft
Drive Type	Hydraulic
Duty Cycle	Continuous Duty
Input Voltage	110/115/120 AC (60Hz, 1 Phase), 220/230/240 AC (60Hz, 1 Phase), 208 AC (60Hz, 1 Phase), 208 AC (60Hz, 3 Phase)
Operator HP	1 HP
Open/Close Time	14 Sec.
Specification Sheet	Download PDF file
