HySecurity SwingRiser 14 w/ Battery Backup (UPS) - Swing Gate Opener 14s Open/Close Time

Name: HySecurity SwingRiser 14 w/ Battery Backup (UPS) - Swing Gate Opener 14s Open/Close Time
Brand: DF Supply, Inc.
SKU: SWING-RISER-14-UPS
Availability: InStock

The SwingRiser 14-Twin delivers 14-second cycle times for 1,000 lb gates with dual hydraulic operation. It includes customizable 80-inch posts and a UPS for power loss scenarios. Note: Requires a HydraSupply Unit, one DC Power Supply, and a Post for full operation.

Please review the linked order form(s) to ensure you are selecting the correct sizes, lengths, quantities, and any necessary components for your project. While you may not need to submit the form, it serves as a helpful guide to avoid missing any required items. Orders placed without the appropriate selections may be delayed or require additional follow-up. Contact us if you have any questions before ordering.

Order Form

1 HySecurity Swing Gate Replacement Parts ↓
	HySecurity SwingRiser HRG 220 Post ‑ Standard Height Part: S-SWR-1-D0	$13,142.54 each $13,142.54 each
	HySecurity HydraSupply DC 2 HP Power Supply Automatic Gate Openers Part: S-HSP-1-80	$11,680.88 each $11,680.88 each
	HySecurity DC 3/4 ‑ 1 HP Power Supply 115 VAC for Automatic Gate Openers Part: DCP1111	$8,996.44 each $8,996.44 each
	HySecurity DC 3/4 ‑ 1 HP Power Supply 208/230 VAC for Automatic Gate Openers Part: DCP1211	$8,996.44 each $8,996.44 each

Details

HySecurity SwingRiser 14 w/ Battery Backup (UPS) - Swing Gate Opener 14s Open/Close Time

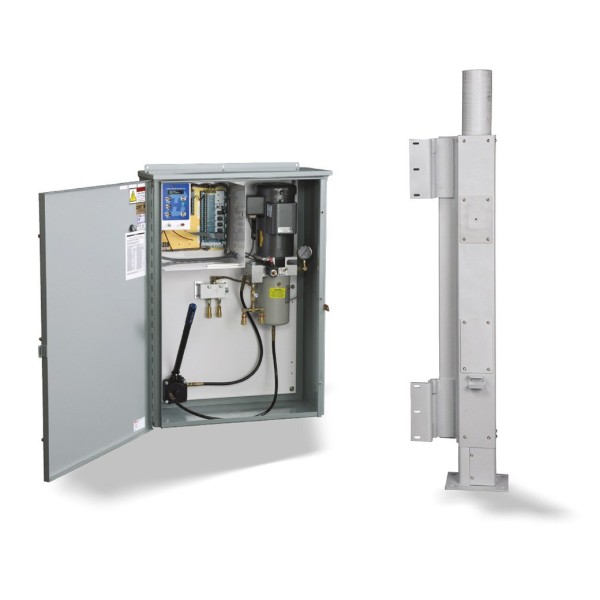

The HySecurity SwingRiser 14 UPS is an industrial swing gate opener designed and manufactured by HySecurity. SwingRiser 14 is capable of elegant cycling of gate leaves weighing up to 1,000 lb in just 14 seconds. Graceful and elegant gate operation is powered by hydraulic drive. SwingRiser posts are 80 inches tall, and can be configured to be left/right handed and inward/outward swinging. Separate HydraSupply located within 100 ft of the opener contains hydraulic power supply and Smart Touch Controller. This model contains the Uninterruptible Power Supply that will continue up to 100 cycles upon AC power failure. It ensures gate operation remains uninterrupted even during power outages.

Note: This modular gate opener requires a HydraSupply Unit, ONE of the two DC Power Supply options, & a Post.

Features:

Hydraulic drive for smooth operation
Supports gate leaves up to 1,000 lb
Operates gates in just 14 seconds
Posts are 80 inches tall and configurable for different swing directions
Separate HydraSupply with hydraulic power and Smart Touch Controller
Uninterruptible Power Supply for up to 100 cycles during power failure

Horsepower: 1 HP
Gate Length Max: Up To 9 ft
Gate Weight Max: 1,000 lbs
Open/Close Time: 14 Seconds
Finish: Zinc Flame Spray & ASTM B633 SC4 Zinc Plated (Inner Post)
Temperature Rating: -40 Degrees F to 158 Degrees F
Battery Backup: Included

Prefer to Call? (888) 378-1127

Questions about part number SWING-RISER-14-UPS?

Required Fields *

SKU	SWING-RISER-14-UPS
Operator Type	SwingRiser
UL 325 Usage Class	Class I, Class II, Class III, Class IV
Max. Gate Weight	1,000 lbs.
Max. Gate Length	9 ft
Drive Type	Hydraulic
Duty Cycle	Continuous Duty
Input Voltage	240 AC (60 Hz, 3 Phase), 460/480 AC (60Hz, 3 Phase)
Operator HP	1 HP
Open/Close Time	14 Sec.
Specification Sheet	Download PDF file
