HySecurity SwingRiser 19- Swing Gate Opener

SwingRiser 19 is capable of cycling a 1,600 lb gate in 19 seconds. Continuous cycling powered by hydraulic automation. 80 inch SwingRiser posts are highly configurable allowing for a perfect fit for any situation. Easy configuration and control with Smart Touch Controller.
1

HySecurity Swing Gate Replacement Parts

SwingRiser 14

HySecurity SwingRiser HRG 220 Post ‑ Standard Height

Part: S-SWR-1-D0

$11,930.23 each
$11,930.23 each
SwingRiser 14

HySecurity HydraSupply 1 HP AC Power Supply for Automatic Gate Openers

Part: S-HSP-1-71

$11,365.45 each
$11,365.45 each

Details

HySecurity SwingRiser 19- Swing Gate Opener

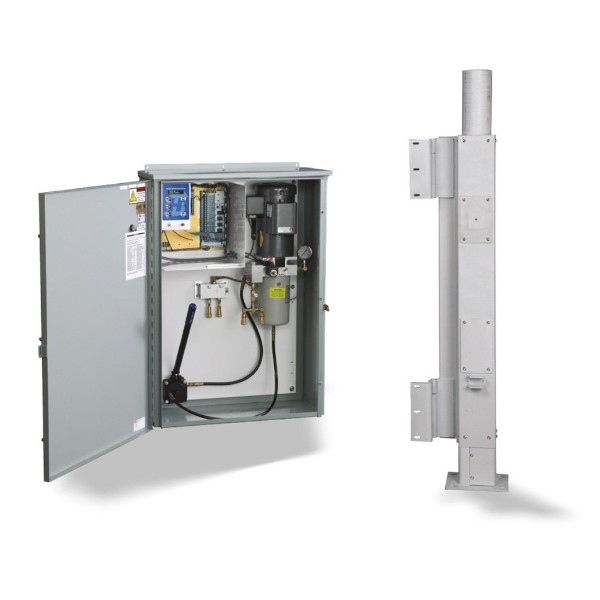

The SwingRiser 19 is an industrial swing gate operator designed and manufactured by HySecurity. SwingRiser 19 is capable of elegant cycling of gate leaves weighing up to 1,600 lb in just 19 seconds. Graceful and elegant gate operation is powered by hydraulic drive. SwingRiser posts are 80 inches tall, and can be configured to be left/right handed and inward/outward swinging. Separate HydraSupply located within 100 ft of the operator contains hydraulic power supply and Smart Touch Controller. This model is suited for high-demand environments where heavy gate leaves require efficient operation.

Features:

  • Hydraulic drive for smooth operation
  • Supports gate leaves up to 1,600 lb
  • Operates gates in just 19 seconds
  • Posts are 80 inches tall and configurable for different swing directions
  • Separate HydraSupply with hydraulic power and Smart Touch Controller
Read More
Prefer to Call? (888) 378-1127

Questions about part number SWING-RISER-19?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU SWING-RISER-19
UL 325 Usage Class Class I, Class II, Class III, Class IV
Max. Gate Weight 1,600 lbs.
Max. Gate Length 16 ft
Drive Type Hydraulic
Duty Cycle Continuous Duty
Input Voltage 110/115/120 AC (60Hz, 1 Phase), 220/230/240 AC (60Hz, 1 Phase), 240 AC (60 Hz, 3 Phase), 208 AC (60Hz, 1 Phase), 208 AC (60Hz, 3 Phase), 460/480 AC (60Hz, 3 Phase)
Operator HP 1 HP
Open/Close Time 19 Sec.
