HySecurity SwingRiser 19 w/ Battery Backup (UPS) - Swing Gate Opener

SwingRiser 19-Twin is capable of cycling a 1,600 lb gate in 19 seconds. Continuous cycling powered by hydraulic automation. 80 inch SwingRiser posts are highly configurable allowing for a perfect fit for any situation. Easy configuration and control with Smart Touch Controller. Contains Uninterruptible Power Supply in case of AC power failure.

Note: This modular gate opener requires a HydraSupply Unit, ONE of the two DC Power Supply options, & a Post.

1

HySecurity Swing Gate Replacement Parts

SwingRiser 19 - SWING-RISER-19-UPS

HySecurity SwingRiser HRG 220 Post ‑ Standard Height

Part: S-SWR-1-D0

$11,930.23 each
$11,930.23 each
SwingRiser 19 - SWING-RISER-19-UPS

HySecurity DC 3/4 ‑ 1 HP Power Supply 115 VAC for Automatic Gate Openers

Part: DCP1111

$8,647.25 each
$8,647.25 each
SwingRiser 19 - SWING-RISER-19-UPS

HySecurity DC 3/4 ‑ 1 HP Power Supply 208/230 VAC for Automatic Gate Openers

Part: DCP1211

$8,647.25 each
$8,647.25 each
SwingRiser 19 - SWING-RISER-19-UPS

HySecurity HydraSupply 3/4 HP DC Power Supply Automatic Gate Openers

Part: S-HSP-1-81

$11,365.45 each
$11,365.45 each

Details

HySecurity SwingRiser 19 w/ Battery Backup (UPS) - Swing Gate Opener

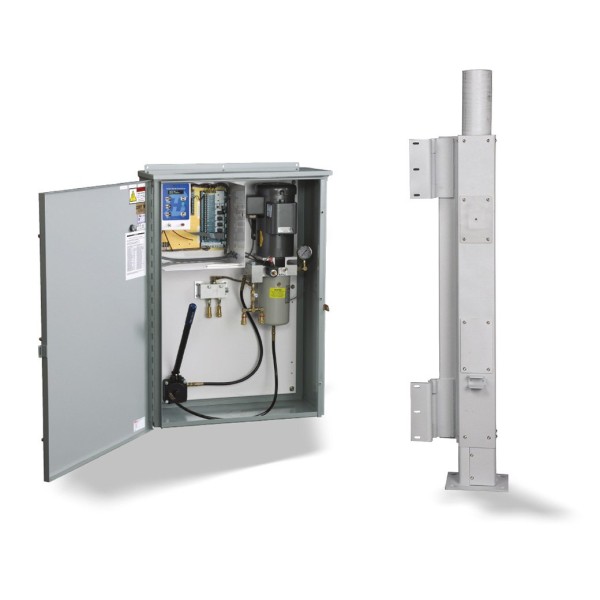

The SwingRiser 19 UPS is an industrial swing gate operator designed and manufactured by HySecurity. SwingRiser 19 is capable of elegant cycling of gate leaves weighing up to 1,600 lb in just 19 seconds. Graceful and elegant gate operation is powered by hydraulic drive. SwingRiser posts are 80 inches tall, and can be configured to be left/right handed and inward/outward swinging. Separate HydraSupply located within 100 ft of the operator contains hydraulic power supply and Smart Touch Controller. This model contains the Uninterruptible Power Supply that will provide up to 100 cycles upon AC power failure. It offers reliable performance for heavy gates even during unexpected power disruptions.

Note: This modular gate opener requires a HydraSupply Unit, ONE of the two DC Power Supply options, & a Post.

Features:

  • Hydraulic drive for smooth operation
  • Supports gate leaves up to 1,600 lb
  • Operates gates in just 19 seconds
  • Posts are 80 inches tall and configurable for different swing directions
  • Separate HydraSupply with hydraulic power and Smart Touch Controller
  • Uninterruptible Power Supply for up to 100 cycles during power failure
Read More
Prefer to Call? (888) 378-1127

Questions about part number SWING-RISER-19-UPS?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU SWING-RISER-19-UPS
UL 325 Usage Class Class I, Class II, Class III, Class IV
Max. Gate Weight 1,600 lbs.
Max. Gate Length 16 ft
Drive Type Hydraulic
Duty Cycle Continuous Duty
Operator HP 1 HP
Open/Close Time 19 Sec.
