HySecurity SwingRiser 30 - Swing Gate Opener 30s Open/Close Time

Name: HySecurity SwingRiser 30 - Swing Gate Opener 30s Open/Close Time
Brand: DF Supply, Inc.
SKU: SWING-RISER-30
Availability: InStock

The SwingRiser 30 can cycle 3,000 lb gates in 30 seconds using durable hydraulic technology. Highly adjustable 80-inch posts support custom installations. A built-in UPS ensures dependable operation during power loss.

Please review the linked order form(s) to ensure you are selecting the correct sizes, lengths, quantities, and any necessary components for your project. While you may not need to submit the form, it serves as a helpful guide to avoid missing any required items. Orders placed without the appropriate selections may be delayed or require additional follow-up. Contact us if you have any questions before ordering.

Order Form

1 HySecurity Swing Gate Replacement Parts ↓
	HySecurity SwingRiser HRG 220 Post ‑ Standard Height Part: S-SWR-1-D0	$13,142.54 each $13,142.54 each
	HySecurity HydraSupply 1 HP AC Power Supply for Automatic Gate Openers Part: S-HSP-1-72	$13,191.34 each $13,191.34 each

Details

HySecurity SwingRiser 30 - Swing Gate Opener 30s Open/Close Time

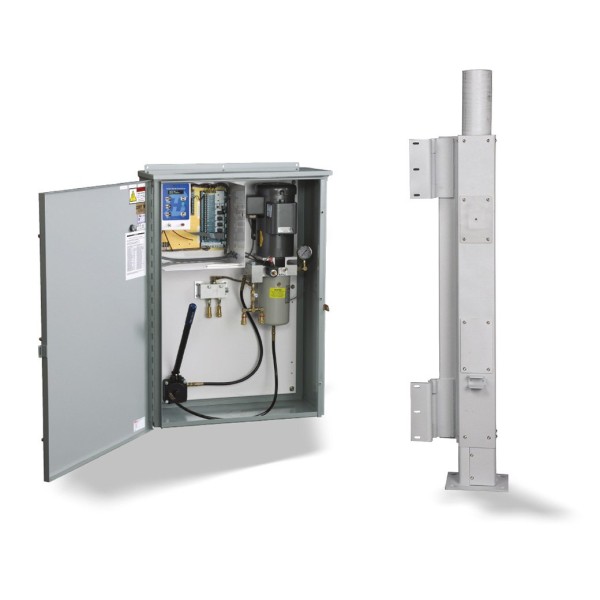

The SwingRiser 30 is an industrial swing gate operator designed and manufactured by HySecurity. SwingRiser 30 is capable of elegant cycling of gate leaves weighing up to 3,000 lb in just 30 seconds. Graceful and elegant gate operation is powered by hydraulic drive. SwingRiser posts are 80 inches tall and can be configured to be left/right handed and inward/outward swinging. Separate HydraSupply located within 100 ft of the operator contains hydraulic power supply and Smart Touch Controller. This model is ideal for facilities with heavier and more demanding gate requirements, ensuring efficient operation even under substantial loads.

Features:

Hydraulic drive for smooth and efficient operation
Supports gate leaves up to 3,000 lb
Cycles gates in just 30 seconds
Posts are 80 inches tall, configurable for different swing directions
Separate HydraSupply with hydraulic power and Smart Touch Controller

Specifications:

Horsepower: 1 HP
Gate Length Max: Up To 16 ft
Gate Weight Max: 3,000 lbs
Open/Close Time: 30 Seconds
Finish: Zinc Flame Spray & ASTM B633 SC4 Zinc Plated (Inner Post)
Temperature Rating: -40 Degrees F to 158 Degrees F

Prefer to Call? (888) 378-1127

Questions about part number SWING-RISER-30?

Required Fields *

SKU	SWING-RISER-30
Operator Type	HydraSwing
UL 325 Usage Class	Class I, Class II, Class III, Class IV
Max. Gate Weight	3,000 lbs.
Max. Gate Length	16 ft
Drive Type	Hydraulic
Duty Cycle	Continuous Duty
Input Voltage	110/115/120 AC (60Hz, 1 Phase), 220/230/240 AC (60Hz, 1 Phase), 240 AC (60 Hz, 3 Phase), 208 AC (60Hz, 1 Phase), 208 AC (60Hz, 3 Phase), 460/480 AC (60Hz, 3 Phase)
Operator HP	1 HP
Open/Close Time	30 Sec.
Specification Sheet	Download PDF file
