How to Choose the Right HySecurity Barrier Gate Opener

Barrier arm gate operators are the go-to solution for controlling vehicle access at parking lots, toll booths, gated communities, and high-security facilities. HySecurity offers a full line of barrier arm systems ranging from fast-acting commercial operators to crash-rated defense solutions. With models available in AC, DC, solar, hydraulic, and even dual-arm formats, there's a barrier system built for every level of control, security, and traffic volume.

Whether you need daily traffic flow management or hostile vehicle mitigation, HySecurity's StrongArm and WedgeSmart lines offer unmatched durability, smart controls, and seamless integration with access systems. From parking garages to secure federal sites, these openers are trusted across a wide range of applications.

Key Factors to Consider:

  • Traffic Volume: Match your operator to your cycle frequency, high-use lanes need fast open/close times and continuous-duty hardware.
  • Arm Length and Type: Arm length (up to 36 ft), breakaway arms, and dual-arm setups depend on lane width and safety zones.
  • Mounting and Site Layout: Consider pedestal height, side-clearance for arm rotation, and whether you need vertical or wedge-style deployment.
  • Crash Rating: For critical sites, choose crash-rated systems like StrongArm M30/M50 or WedgeSmart with certified vehicle-stopping capability.
  • Manual Override or Backup: Some models offer hydraulic manual versions or battery backup to maintain operation during outages.
  • Power Source: AC, DC, and solar options are available depending on infrastructure and location. Solar is ideal for remote or green-design projects.
  • Integration Needs: HySecurity barrier arms integrate with RFID, ticketing, intercoms, and emergency response systems for total access control.

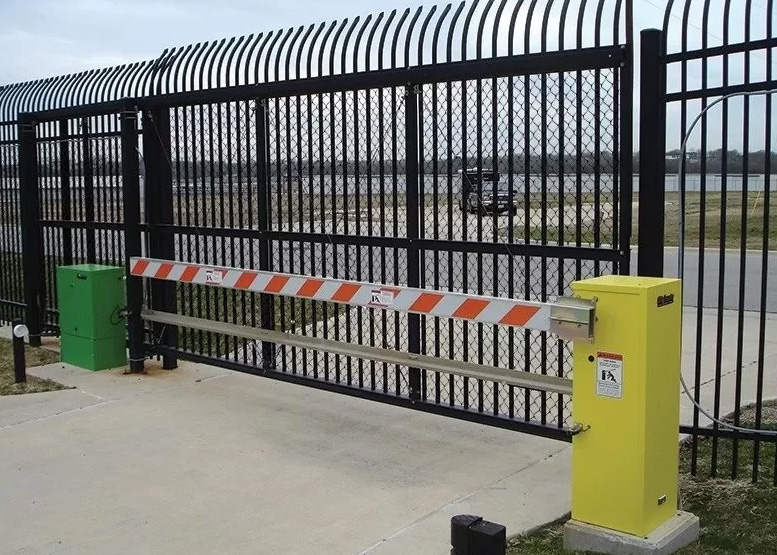

StrongArm & StrongArmDOT

The StrongArm series is HySecurity's most widely used barrier arm operator, trusted in commercial, industrial, and transportation environments. These hydraulic barrier arms offer high-speed, high-duty operation with cycle life ratings of up to 10 million uses. Arm lengths can extend up to 36 feet and include options like breakaway or aluminum arms. The StrongArmDOT variant is designed specifically for transportation infrastructure, such as toll roads, DOT entry lanes, and highway systems, offering fast cycling and rugged reliability. Whether you're managing a logistics center or a public roadway, the StrongArm line has the flexibility and durability to keep traffic flowing securely.

  • Hydraulic drive system for smooth, powerful motion
  • Supports arms up to 36 ft (standard or breakaway)
  • Smart Touch Controller for full access system integration
  • StrongArmDOT optimized for toll booths and DOT use
  • Perfect for airports, campuses, highways, and port entries

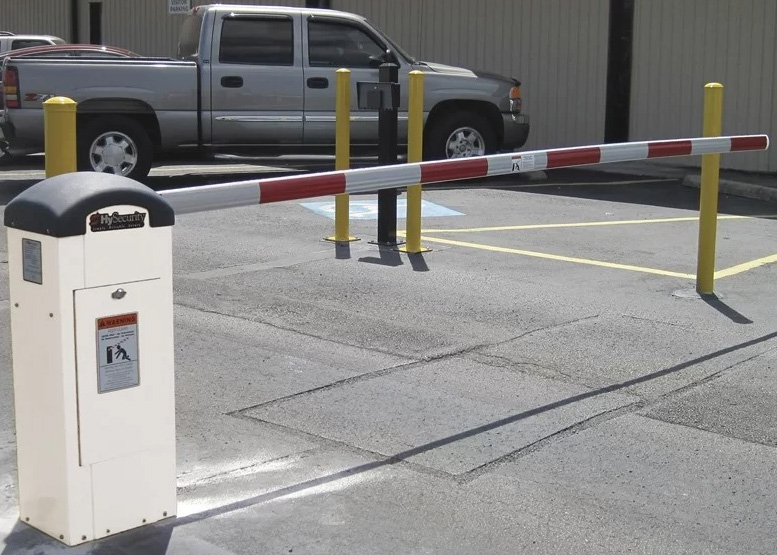

StrongArmPark

The StrongArmPark series is designed specifically for parking applications, offering a reliable and cost-effective solution for gated parking lots, garages, and vehicle access lanes. Available in both AC/DC and solar-powered models, StrongArmPark operators feature a compact design with efficient operation and optional battery backup. These units are ideal for low to moderate traffic volumes and integrate easily with access control systems, ticket dispensers, and RFID readers. Whether powered by utility connection or solar array, StrongArmPark helps you manage traffic access with simplicity and long-term dependability.

  • Available in AC/DC and Solar configurations
  • Supports arms up to 14 ft
  • Designed for gated communities, garages, and surface lots
  • Battery backup available for outage protection
  • Works with vehicle loops, keypads, and permit systems

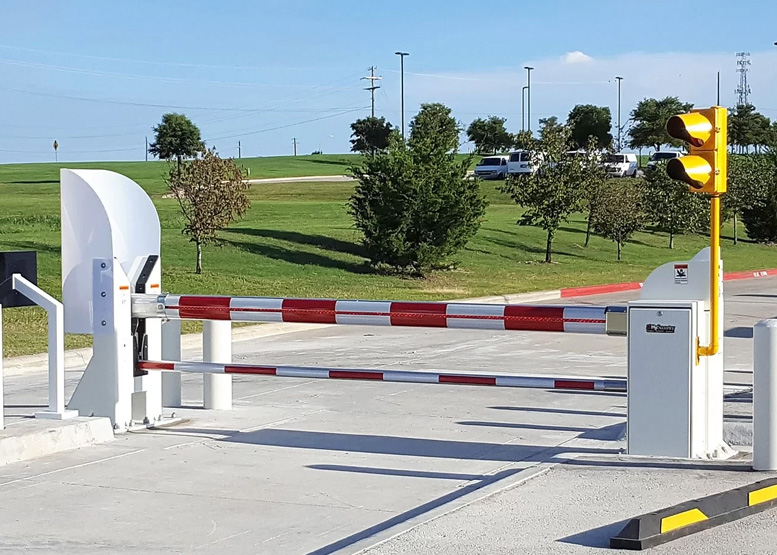

StrongArm M30 & M50

The StrongArm M30 and M50 barrier arms are engineered for hostile vehicle mitigation (HVM) and certified to stop vehicle threats at high speeds. The M30 is rated to stop a 15,000 lb truck traveling at 30 mph (ASTM F2656 M30/P1), while the more robust M50 is tested to stop the same vehicle at 50 mph (ASTM F2656 M50/P1). These crash-rated operators are available in several configurations including hydraulic, hydraulic manual (for manual actuation), and hydraulic dual-arm setups for wider lane coverage. Ideal for embassies, military facilities, power plants, and sensitive infrastructure, these openers provide both daily traffic control and emergency vehicle barrier protection in one package.

  • ASTM crash ratings: M30 (30 mph) and M50 (50 mph) certified
  • Hydraulic, hydraulic manual, and dual-arm options available
  • Heavy-duty steel arms with integrated locking mechanisms
  • Designed for critical infrastructure, defense, and utility sites
  • Operates as both a routine gate and a crash barrier

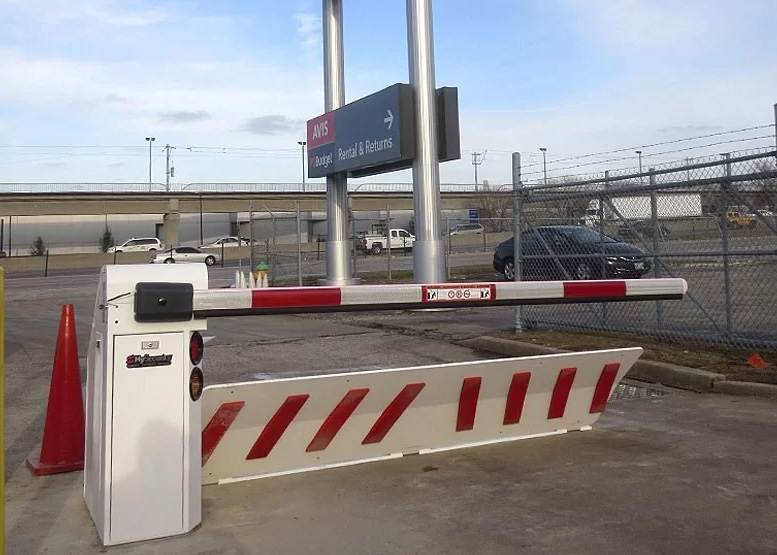

WedgeSmart

The WedgeSmart is HySecurity's compact, surface-mounted wedge barrier designed for vehicle interdiction in locations where underground installation isn't feasible. Despite its low profile, it offers impressive stopping power, with models tested to stop a 15,000 lb vehicle at 30 mph. Unlike larger crash systems that require deep foundations, the WedgeSmart installs directly onto the surface, making it ideal for retrofit sites, parking garages, and areas with restricted excavation. It's available in automatic hydraulic versions for daily use, or manual versions for permanent blockade applications.

  • Surface-mounted, no deep trench required
  • Crash-tested to ASTM M30/P1 standards
  • Hydraulic and manual versions available
  • Installs quickly at retrofit or constrained sites
  • Perfect for garages, stadiums, and temporary event security

Barrier Gate Opener Model Recommendations by Application:

  • Parking Lots & Garages: StrongArmPark (AC/DC or Solar): Compact and cost-effective for gated lots, garages, and private access lanes. Choose solar for remote or eco-friendly installations.
  • Commercial & Industrial Sites: StrongArm: Reliable daily-use barrier arm for logistics centers, campuses, and multi-lane traffic control with optional breakaway arms and Smart Touch integration.
  • Transportation & Toll Booths: StrongArmDOT: Optimized for highway and DOT applications with fast cycles, rugged durability, and full compatibility with toll and access systems.
  • High-Security & Government Facilities: StrongArm M30 or M50: Crash-rated to ASTM standards for critical infrastructure and anti-ram protection. Choose M30 for 30 mph threats or M50 for higher-speed interdiction.
  • Retrofit or Space-Constrained Sites: WedgeSmart: Surface-mounted wedge barrier for fast deployment where trenching is limited. Crash-tested, low-profile, and ideal for garages or event security.

Need Help Choosing?

Not sure which barrier arm solution is best for your site? Our experienced sales team is here to guide you through the selection process. We'll help you compare models, evaluate crash ratings, and build a complete package that works with your access control system, power source, and site layout.

Call us, message us, or request a quote today, we're here to make sure your project is secure, reliable, and done right the first time.

Discuss Gate Opener Options with an Expert
