Technical Resources and Order Forms

Technical Bulletins

When technical issues arise with a product or system, having the most accurate, complete information needed to address the matter is vital. This page contains information - including helpful PDF documents - to assist in resolving problems that arise in the installation, usage and maintenance of HySecurity systems and products.

Issue	Details	Click To Download PDF

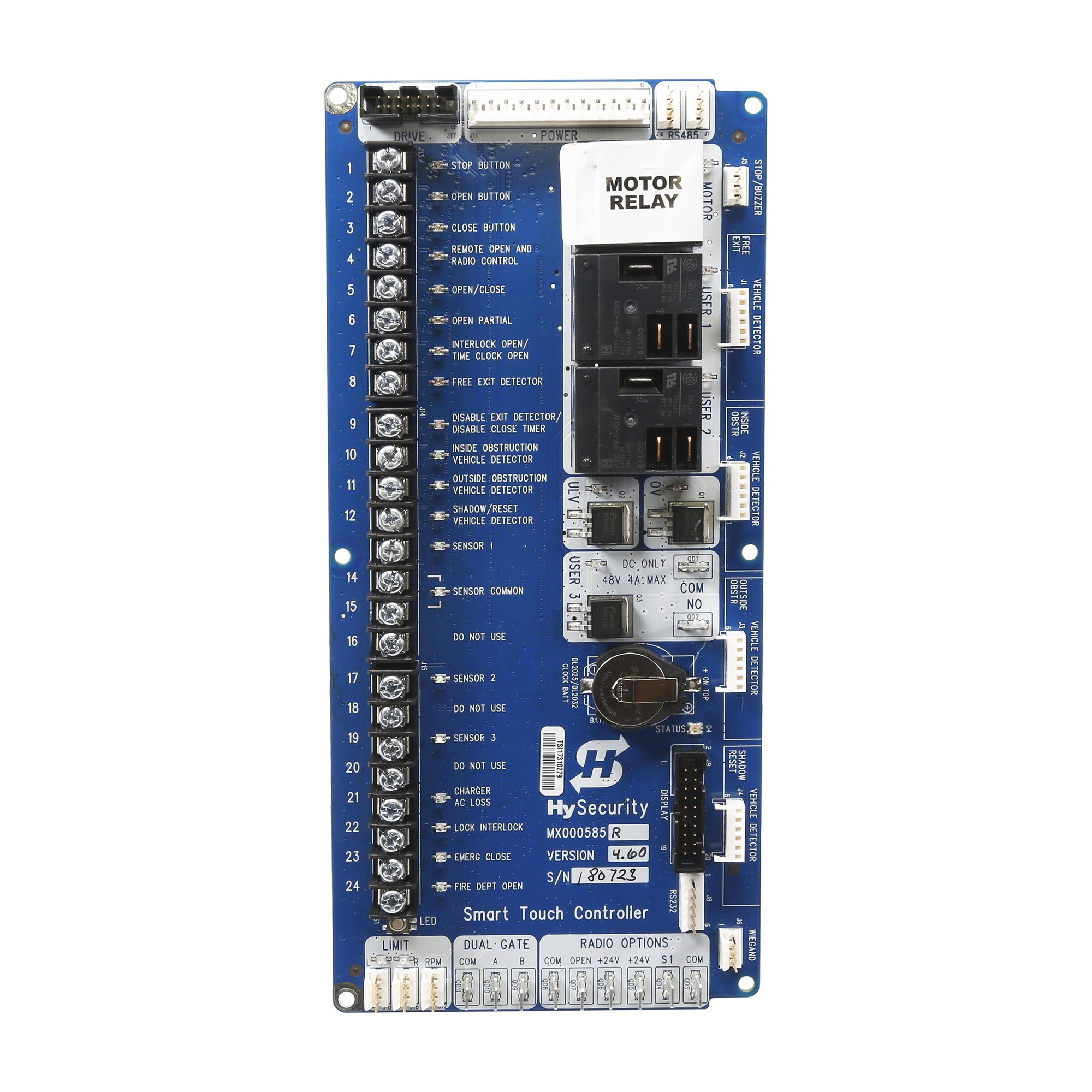

Smart Touch Controller LED Polarity Test	LED indicators for inputs and outputs may not illuminate, making it difficult to determine whether or not they are still active. All other board functions are not affected by this issue, which can occur with all models of hydraulic operators and control board spare parts orders, but the PDF below provides step-by-step instructions for testing LED lights on these devices.	Testing Instructions

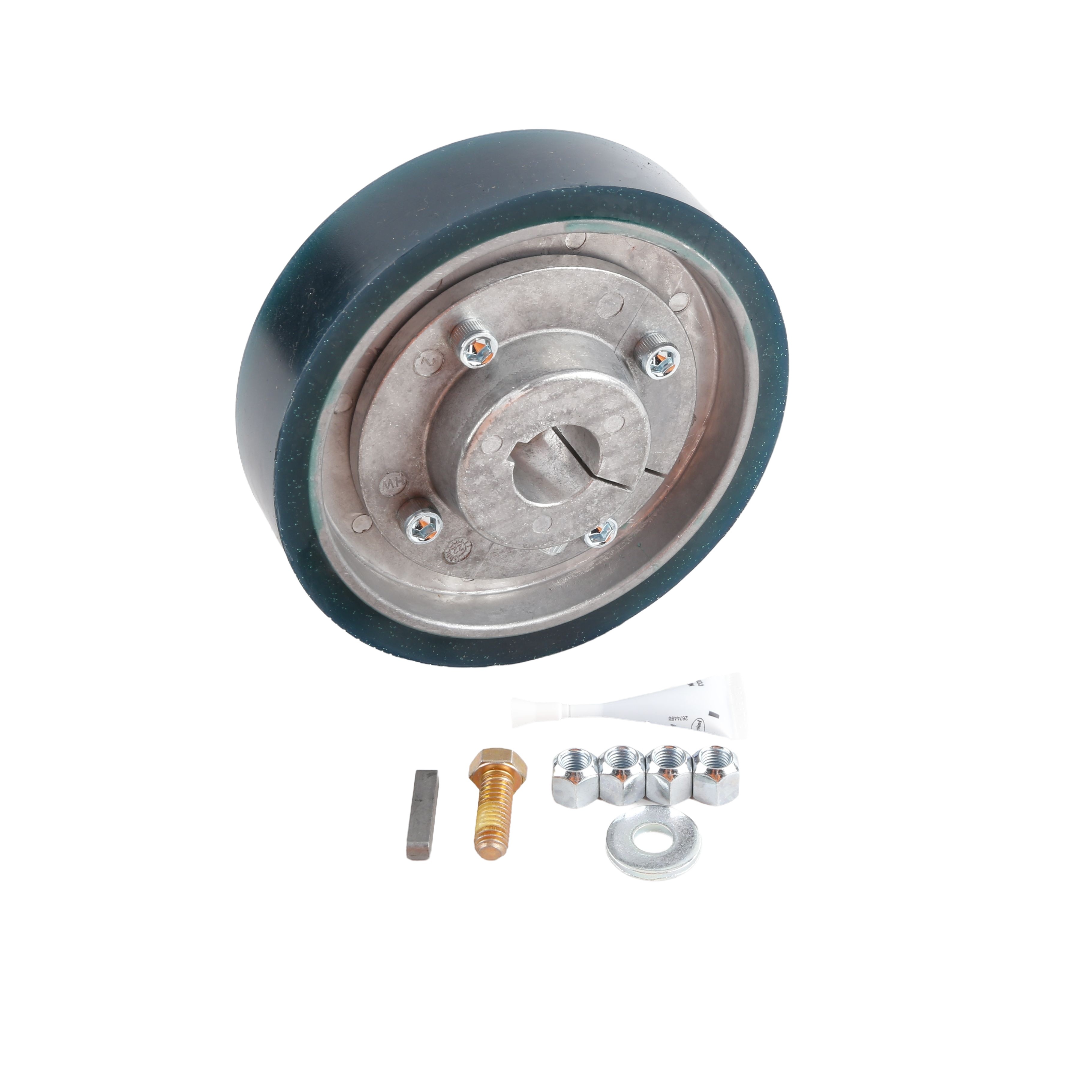

MX4994 AdvanceDrive 6" Aluminum Wheel	The 6" AdvanceDrive Wheels used in SlideDriver models have been replaced with new aluminum wheels that do not require a metal retaining plate, making disassembly quick and easy.	Information

Order Forms

Operators

Operator Name	Model Options	Click To Download Form
HydraSwing	• HydraSwing 40 • HydraSwing 40 Twin • HydraSwing 40F • HydraSwing 40F Twin • HydraSwing 80F • HydraSwing 150	Order Form
HydraWedge SM50	• HydraWedge SM50 • HydraWedge SM50 Twin • HydraWedge SM50 UPS • HydraWedge SM50 Twin UPS	Order Form
HydraLift	• HydraLift 10 (HVG-420-ST) • HydraLift 20 (HVG-460-ST) • HydraLift 10F (HVG-420-EX-ST) • HydraLift 20F (HVG-460-EX-ST)	Order Form
WedgeSmart DC™	• WedgeSmart DC • WedgeSmart DCS (Solar)	Order Form
SwingRiser (HRG 220) Single	• SwingRiser 14 • SwingRiser 19 • SwingRiser 30	Order Form
SwingRiser (HRG 222) Twin	• SwingRiser 14 • SwingRiser 19 • SwingRiser 30	Order Form
StrongArmCrash M30	• StrongArmCrash M30 • StrongArmCrash M30 NP (No Power) • StrongArmCrash M30 CE	Order Form
StrongArmCrash M50	• StrongArmCrash M50 • StrongArmCrash M50 NP (No Power) • StrongArmCrash M50 CE	Order Form

Replacement Parts

Part Name	Order Includes	Click To Download Form

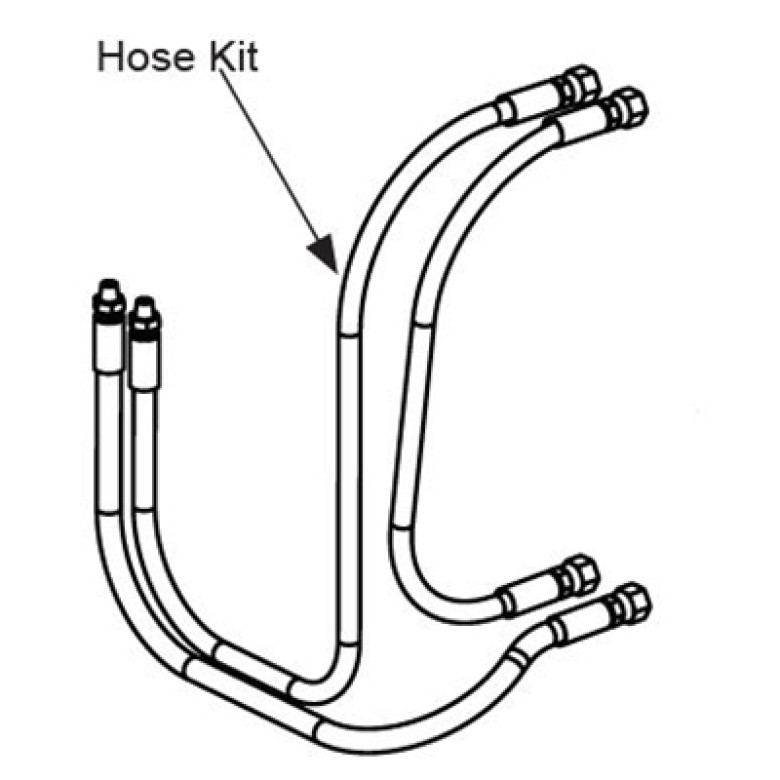

HydraLift Hose	• (4) 3/8" Hose Fully Charged w/ Hydraulic Oil (MX001113) • HydraLift Hose Fitting Kit (MX001140)	Order Form
HydraSupply XL Universal HPU Hose	• (2) 1/2" Hose Fittings Kit Fully Charged w/ Hydraulic Oil (MX4155) • 1/2" Heavy Duty Hose Fully Charged w/ Hydraulic Fluid (MX4027-01) • 1/2" Heavy Duty Hose Fully Charged w/ Biodegradable Hydraulic Fluid (MX4027-02)	Order Form
HydraSwing 40/40F Hose	• (2) 1/4" Hose Fully Charged w/ Hydraulic Fluid (MX001114) • Hose Fittings Kit (MX001132)	Order Form
HydraSwing 40/40F Twin Hose	• (4) 1/4" Hose Fully Charged w/ Hydraulic Fluid (MX001114) • Hose Fittings Kit (MX001135)	Order Form
HydraSwing 80F/150 Twin Hose	• (2) 3/8" Hose Fully Charged w/ Hydraulic Fluid (MX001113) • Hose Fittings Kit (MX001574)	Order Form
HydraWedge SM50 Hose	• 3/8" Heavy Duty Hose Fully Charged w/ Hydraulic Fluid (MX4052-01) • 3/8" Heavy Duty Hose Fully Charged w/ Biodegradable Hydraulic Fluid (MX4052-02) • Hose Fittings Kit (MX001574)	Order Form
HydraWedge SM50 Twin Hose	• (2) 3/8" Heavy Duty Hose Fully Charged w/ Hydraulic Fluid (MX4052-01) • (2) 3/8" Heavy Duty Hose Fully Charged w/ Biodegradable Hydraulic Fluid (MX4052-02) • Hose Fittings Kit (MX001140)	Order Form
Modular SlideDriver 333 Model Hose	• (2) 3/8" Hose Fully Charged w/ Hydraulic Fluid (MX001113) • Hose Fittings Kit (MX001574)	Order Form
SwingRiser HRG 220 Hose	• (2) 1/4" Hose Fully Charged w/ Hydraulic Fluid (MX001114) • Hose Fittings Kit (MX001132)	Order Form
SwingRiser Twin HRG 222 Hose	• (4) 1/4" Hose Fully Charged w/ Hydraulic Fluid (MX001114) • Hose Fittings Kit (MX001135)	Order Form
SwingRiser Inner Post Only Replacement	Options: • RILO 90 (MX000941) • ROLI 90 (MX000942) • RILO 100 (MX000943) • ROLI 100 (MX000944)	Order Form
SwingRiser Inner Post w/ Hydraulics Replacement	Options: • RILO 90 (MX001361) • ROLI 90 (MX001389) • RILO 100 (MX002819) • ROLI 100 (MX002820)	Order Form
